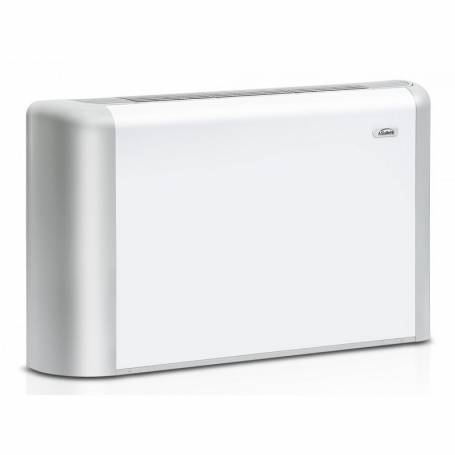

Galletti Fan Coil Fan Coil Estro F9l Kw 4.84

GALLETTI ESTRO F9L FAN COIL FAN COIL 4.84 KW

• Model : ESTRO F9L
• Fan coils for exposed wall installation with cover cabinet with vertical air outlet
• Dimensions: 1194 x 564 x 226mm

Cockerels Estro

• The widest range of fan coils on the market combined with Galletti technology, quality and reliability
• The ESTRO series is absolutely the line of fan coils on the market with the widest range of models and accessories capable of satisfying all the needs of professionals in the sector. The range consists of 20 models made in 9 construction versions. For the realization of the ESTRO project, high quality materials were chosen which, together with the great care and attention given to the assembly of the main components, qualify it in the field of performance reliability and acoustic comfort. The ESTRO line has a constructive concept that allows the models for vertical installation to be unified with those for horizontal installation: versions are made for surface mounting on the wall, floor/ceiling, recessed wall/ceiling, and lowered floor. In the built-in ductable version, ESTRO has a series of accessories that allow quick and economical installation with flexible ducts directly coupled to air diffusion grilles. ESTRO can be associated with a range of on-board or wall-mounted control panels made up of over 20 options depending on the level of regulation and comfort required. An innovative air ionization system guarantees the sanitization of the terminal and the deodorization of the ambient air.

Estrus FL

Version with cover cabinet suitable for wall-mounted installation. Vertical air outlet, air intake filter locked to the cabinet with ¼ turn screws. ESTRO FL is available in 20 models.

Technical characteristics of the main components:

• Rounded shapes and colors that integrate perfectly with current furnishing criteria, in compliance with architectural requirements.
• Cover cabinet made up of a thick steel sheet panel (10/10 mm); side panels and delivery grille (adjustable by 180°) are made of ABS. The side doors allow access to the technical compartments.
• Structure in thick galvanized steel sheet (up to 15/10 mm), insulated with class 1 self-extinguishing thermal insulating panels. The FU – FB – FC – FF and FBC versions are equipped with a double tray for collecting the condensate.
• High efficiency heat exchange coil, in copper pipe and aluminum fins locked to the pipes by mechanical expansion, it is equipped with brass manifolds and vent valve. The battery, normally mounted with connections on the left, can be rotated by 180°.
• Three or six-speed electric motor mounted on anti-vibration supports, with permanently inserted capacitor and thermal protection of the windings.
• Double inlet centrifugal fans, statically and dynamically balanced and coupled directly to the electric motor, made of antistatic ABS with airfoil blades and staggered modules
• Regenerable air filter in honeycomb polypropylene, mounted on a galvanized sheet frame with protection net, easily removable for maintenance operations. The filter is locked to the cover cabinet by means of 1/4 turn screws (model 12 excluded).
• Control panels, available as an accessory, for controlling and regulating the temperature by means of a microprocessor system, which automatically adjusts the operation of the fan coil as the ambient conditions vary.

Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 50.0 kg
• marca: Cockerels
• modello: F9L_1
• potenza in kw: 4
