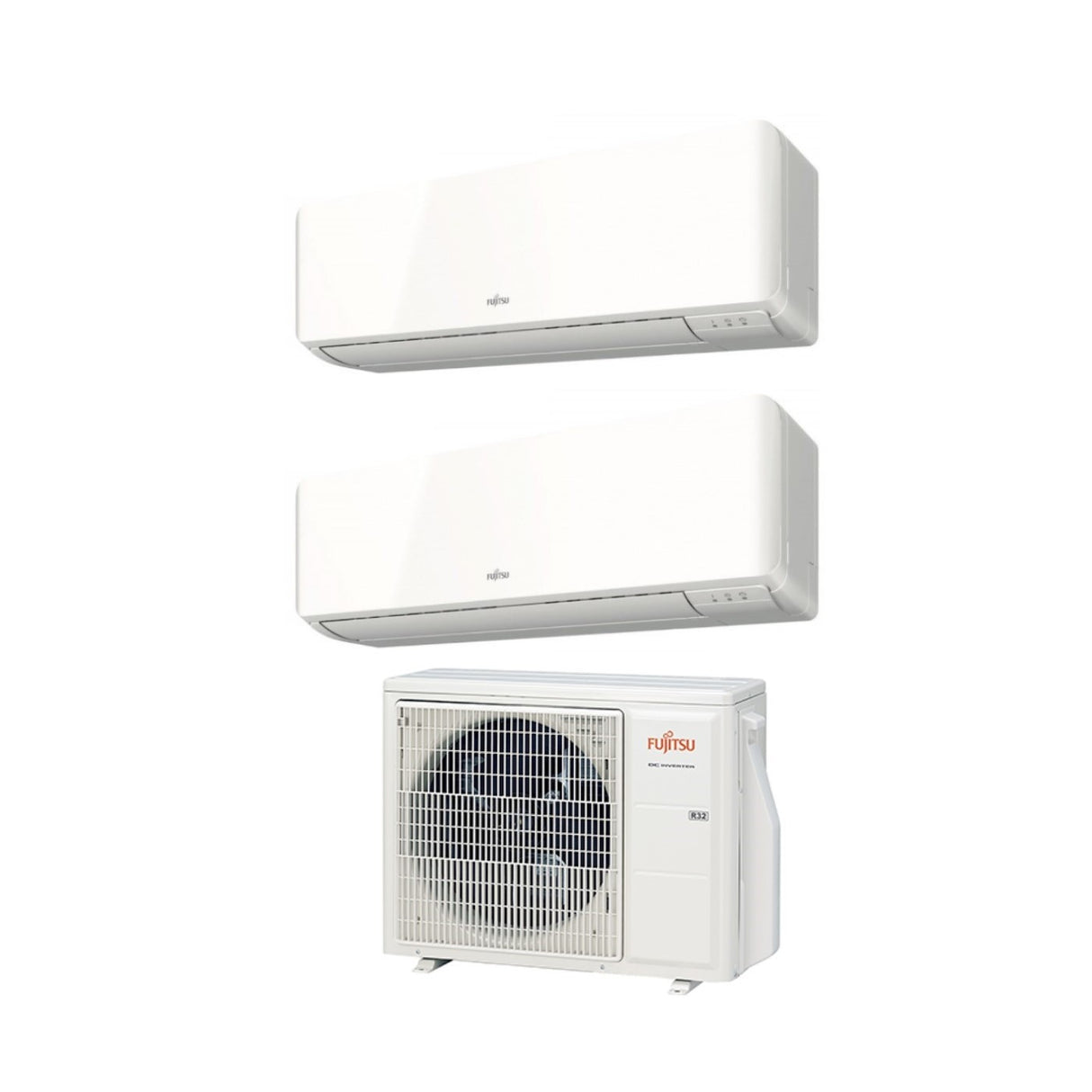

Fujitsu Air Conditioner Dual Split Inverter Series Km 9+12 With Aoyg18kbta2 R-32 Wi-Fi Optional 9000+12000 - New
Fujitsu Air Conditioner Dual Split Inverter Series Km 9+12 With Aoyg18kbta2 R-32 Wi-Fi Optional 9000+12000 - New is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:
- Standard Shipping: Estimated delivery within 2 to 5 business days
- Premium Shipping: Guaranteed delivery within 24 business hours
- Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours
See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.
For more details on Premium Shipping, please visit the Premium Shipping page.
Customer service
Customer service
Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.
Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.
Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.
Description
Description
Technical features
Indoor units
1) Model
- Internal Unit Catalog Code: 1x ASYG09KMCC
- Internal Unit Code: 3NGF8297
- Power : 9000 Btu
- Cooling Capacity : 2.5 kW
- Heating Capacity : 2.8 kW
- Air flow : 700 m 3 /h
- Sound pressure level : 22~40 dB(A)
- Sound power level : 56~57 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 270x834x222 mm
- Indoor Unit Weight: 10 Kg
- Wi-Fi Optional ( Code : UTY-TFSXW1 )
2) Model
- Internal Unit Catalog Code: 1x ASYG12KMCC
- Internal Unit Code: 3NGF7170
- Power : 12000 Btu
- Cooling Capacity : 3.4 kW
- Heating Capacity : 4.0 kW
- Air flow : 700 m 3 /h
- Sound pressure level : 22~40 dB(A)
- Sound power level : 55~58 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 270x834x222 mm
- Indoor Unit Weight: 10 Kg
- Wi-Fi Optional ( Code : UTY-TFSXW1 )
Model:
- Catalog code Outdoor Unit : AOYG18KBTA2
- Connectable Indoor Units : 2
Energy efficiency:
- SEER: 8.6
- SCOP : 4.7
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
Performance:
- Cooling Capacity: 5.0 kW
- Heating Capacity: 5.60 kW
- Std cooling absorption: 1.24 kW
- Std heating absorption: 1.22 kW
- Sound power level Cooling : 60 dB(A)
- Sound power level Heating : 62 dB(A)
- Sound pressure level Cooling : 47 dB(A)
- Sound pressure level Heating : 50 dB(A)
Characteristics:
- Power supply (V/Hz/Φ) : 230/50/1
- Refrigerant gas : R-32
- Pipe diameter Liquid : 6.35 mm (1/4") x2
- Gas pipe diameter : 9.52 mm (3/8") x2
- Guaranteed temperature range:
- - Cooling: -10°~46°C
- - Heating: -15°~24°C
Dimensions:
- External Unit Dimensions (WxHxD): 632×799×290 mm
- Weight of Outdoor Unit: 37 Kg
Fujitsu KM Series
The air conditioners of the entire KM range can also be controlled remotely via smartphone and tablet: simply download the free FGLair application, also available in Italian, and install the UTY-TFSXW1 interface.
The design is characterized by the essentiality of the elegant linear edges: a minimal conception that has allowed Fujitsu Climatizzatori to win the "Good Design Award", in whose evaluation for the assignment of the recognition criteria such as ease of use, basis of product development, functionality and new technologies used.
Slim and elegant design
The slim and elegant shape is achieved thanks to the multi-pass high-density heat exchanger and the high-efficiency fan
Smartphone Control (Optional)
Easy and intuitive App for air conditioning control both from inside and outside the home or office via smartphone, tablet and PC. Wireless LAN interface The exclusive Wi-Fi adapter allows you to control the air conditioner from your smartphone, tablet and PC
Comfortable ventilation and silent operation
The large baffle and the new diffusion structure allow for a comfortable airflow that spreads wider to the user's feet and silent operation.
Functions
• Up and down movement of the flaps Automatic opening and closing of the flaps
• Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
• Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns
• 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
• Automatic shutdown Sleep Night comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner
• Daily Timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
• Maximum Power Function that allows you to activate the climate control system at maximum power for rapid achievement of comfort
• Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates in heating or cooling mode
• Energy saving Control system for energy saving
• Filter status indicator Allows you to check the cleanliness of the filters
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
Technical Data Sheet
Technical Data Sheet
- peso: 55.0 kg
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A++
- gas: R-32
- marca: Fujitsu
- metri quadri : 25/35
- modello: Fujitsu KMCC 9+12 18
- potenza btu: 9000+12000
- superficie riscaldabile mq: 25/35
