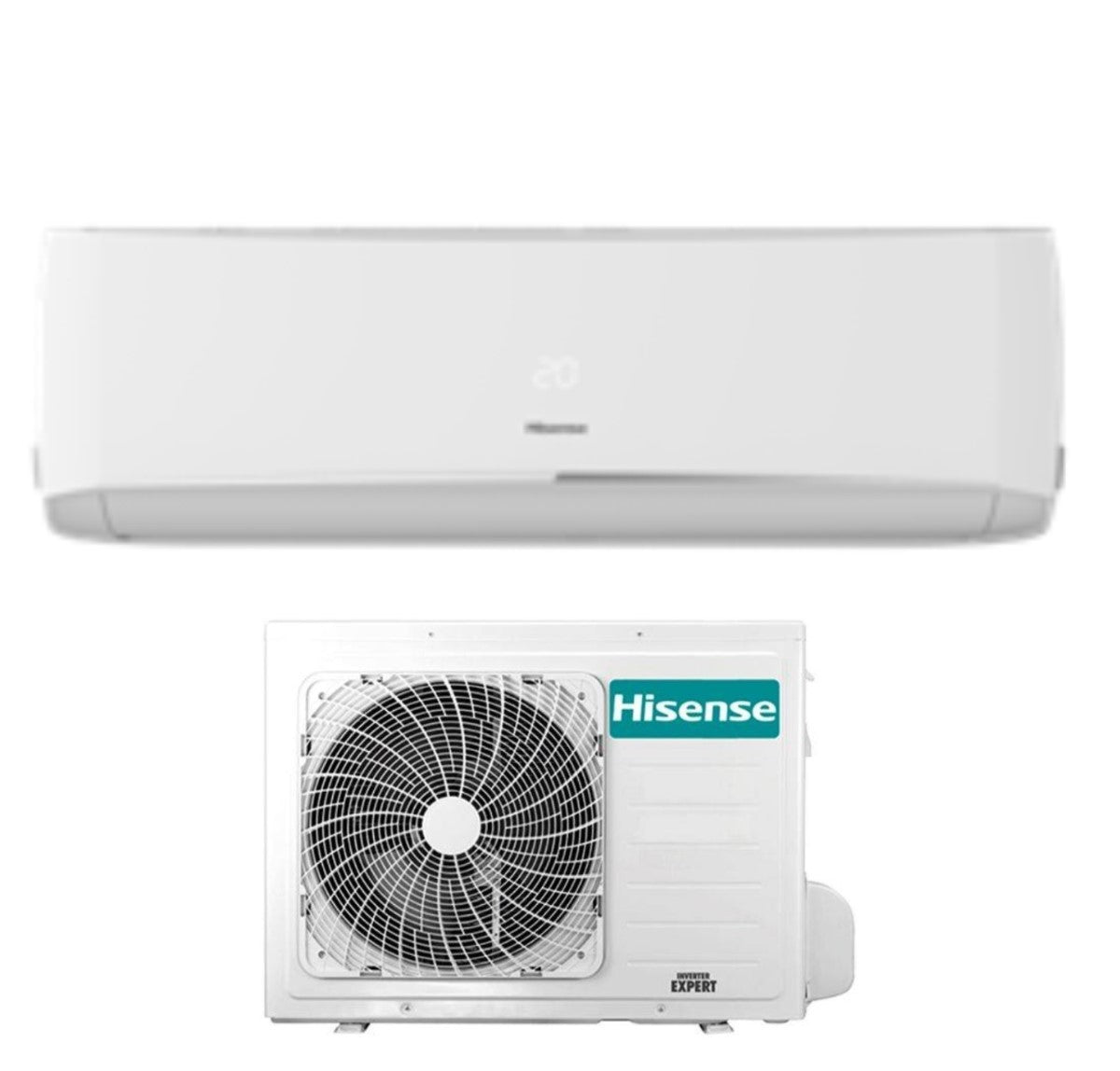

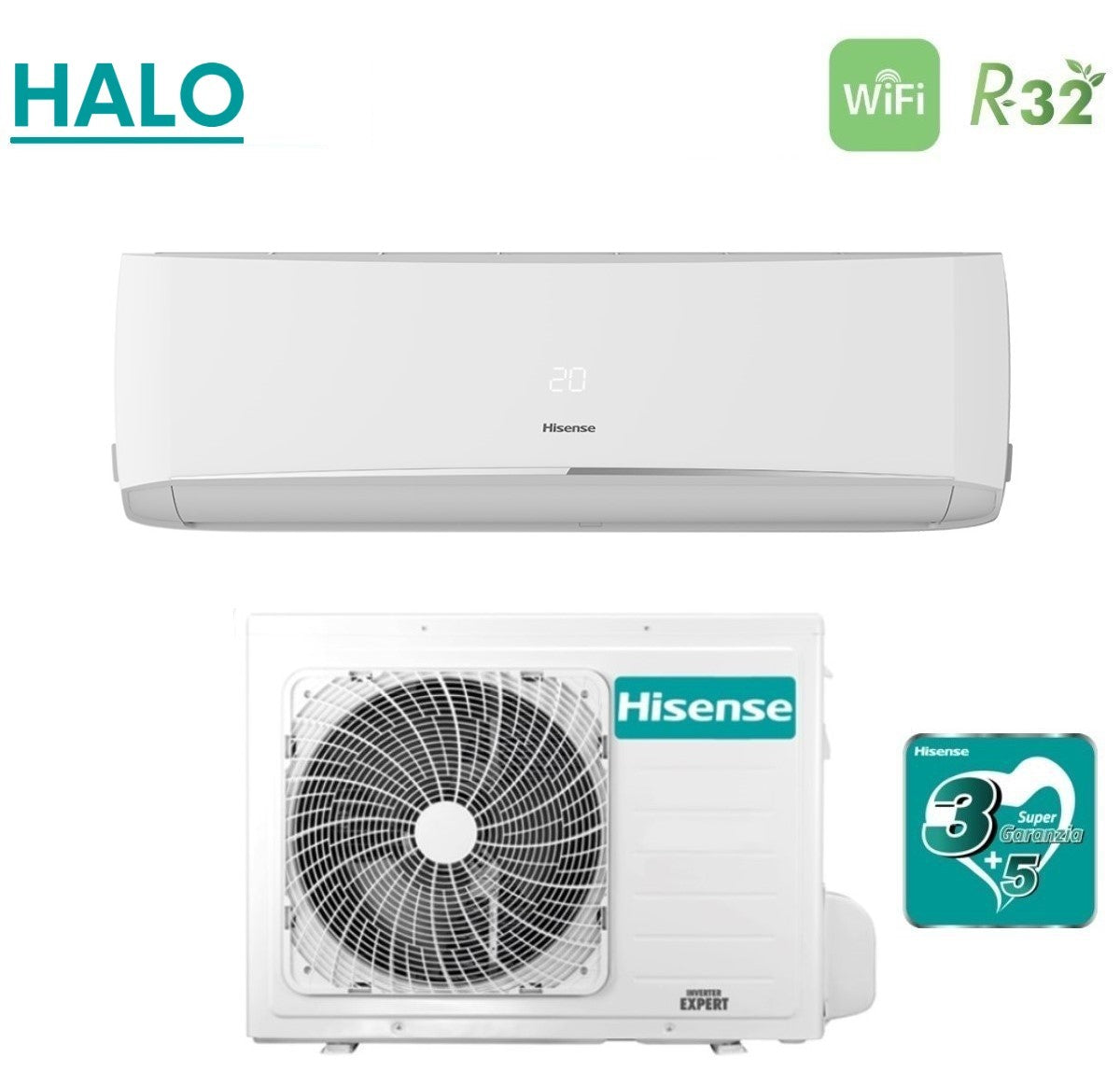

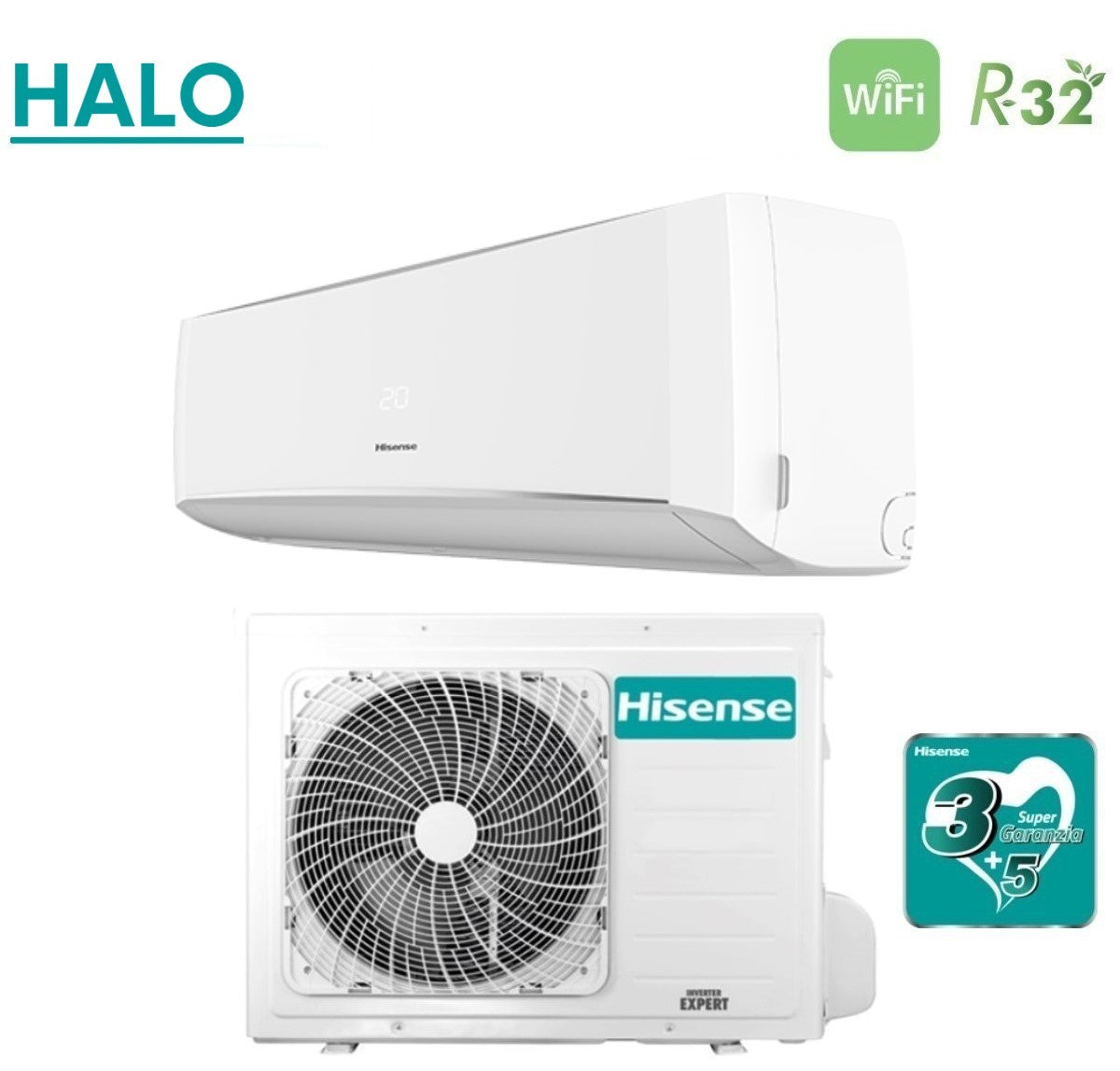

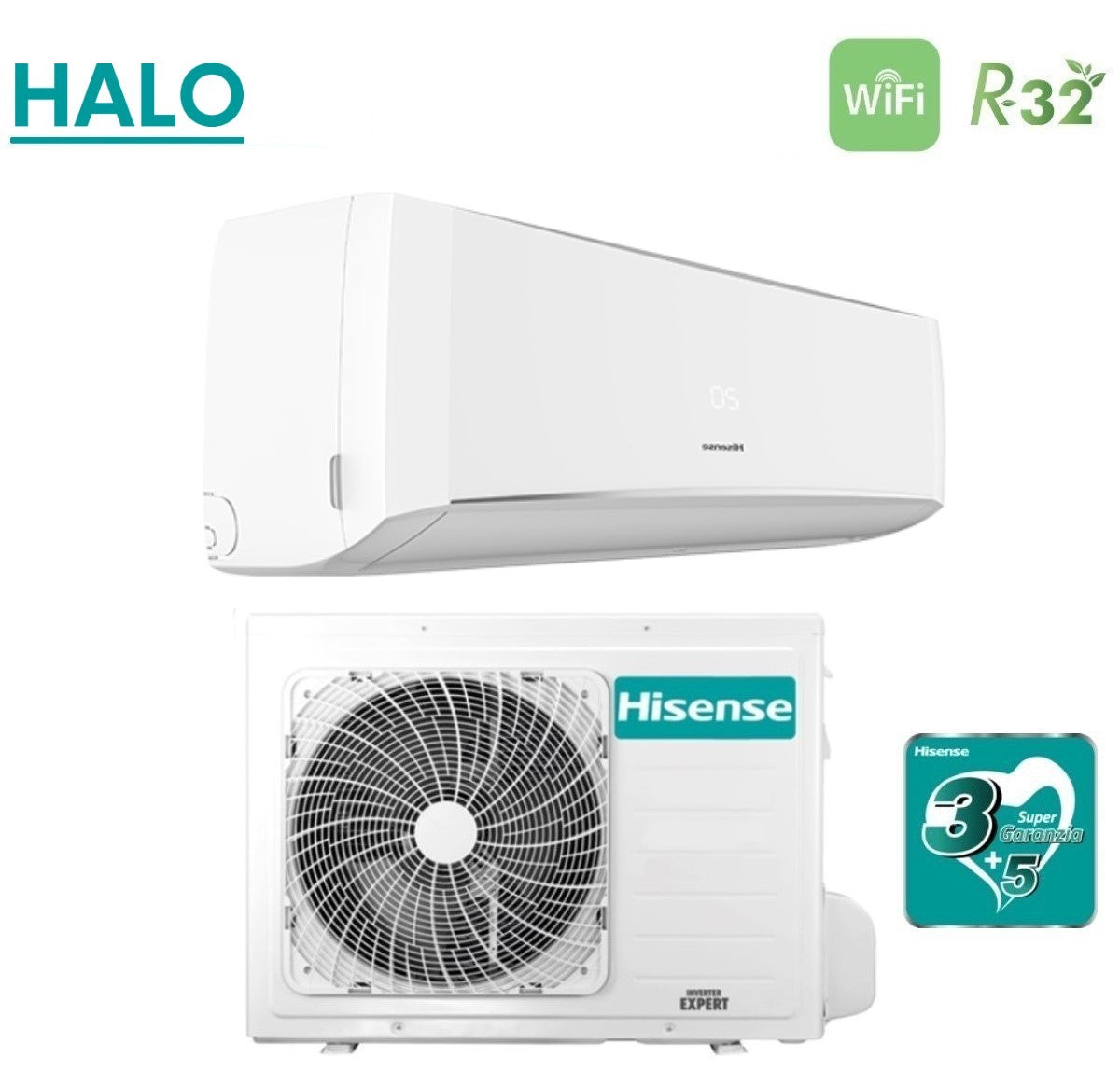

Hisense Inverter Air Conditioner Halo Series 9000 Btu Cbyr0903g R-32 Integrated Wi-Fi A++/A+

Technical features

• Indoor unit catalog code : CBYR0903G
• Outdoor unit catalog code : CBYR0903W
• Power : 9000 Btu
• Integrated Wi-Fi
• Voice control with Alexa and Google Home

Energy efficiency

• SEER : 6.1
• SCOP : 4
• Energy Efficiency Class in Cooling : A++
• Heating Energy Efficiency Class: A+
• Annual Energy Consumption in Cooling : 149 kWh/a
• Annual Energy Consumption in Heating: 700 kWh/a

• Cooling Capacity: 2.6 kW
• Heating Capacity: 2.7 kW
• Cooling absorption: 0.9 kW
• Heating absorption: 0.7 kW
• Treated Air Internal Unit : 9 m ³ /min
• Sound Power Level Indoor Unit : 56 dB(A)
• Sound Pressure Level Indoor Unit : 24~39 dB(A)

• Power supply (V,Hz, Ø) : 220~240/50/1
• Refrigerant gas : R32
• Operating range
• - Cooling: -15° ~ 43°C
• - Heating: -15° ~ 24° C

Hisense HALO

DC inverter technology

Hisense inverter air conditioners contain advanced technologies to guarantee efficiency, energy saving, silence and comfort

• 180° sine wave technology: More efficient, more stable, longer use

• Magnetic field control for operation even at high frequencies (> 70 Hz): rapid cooling, rapid heating

• Frequency compensation technology : Constant temperature , Energy saving

• Wide range of frequency control : Continuous operation , Accurate control

• 3-D inverter : High efficiency , Great adaptability , Less maintenance

Easy installation

The New Comfort models are easy to install thanks to the new design of the indoor unit and the mounting plate.

1 . The mounting plate has two tabs that allow you to distance the indoor unit from the wall for more usable space while connecting the pipes

2. The panel on the bottom of the indoor unit is easily removed to ensure convenient access to the piping

3. You can choose the side to connect the drain pump according to your installation needs

Wi-Fi control

Hisense air conditioners are managed comfortably inside and outside the home with a mobile device and a Wi-Fi connection. HiSmart Life is the easy-to-use app with an intuitive interface that allows you to control the air conditioner wherever you are. The app is available for iOS and Android.

After downloading the app and pairing the air conditioner, the app allows you to manage operating modes, temperature, fan speed and air flow. From the «Intelligent function» section it is also possible to set daily or weekly timers.

Smart Voice Control

The new HiSmart Life app is compatible with Alexa and Google Assistant: thanks to voice interaction, it is possible to turn on, turn off, adjust the temperature and set the desired operating mode (cooling or heating).

Find HiSmart Life in the Alexa Skills and in the Google assistant catalog.

Total Protection : 4 Filters in 1

• Catechin filter : removes odors and dust

• HEPA filter : removes pollen and dust

• Silver Ion Filter : sterilizes bacteria by acting on their composition

• Photocatalyst filter

supersilent

The advanced control technology and the special design of the fan guarantee maximum silence in Super Silent mode. The air conditioner reaches 16dB(A) of silence.

I Feel

The sensor inside the remote controller can detect the surrounding temperature and transmit this information to the indoor unit. The indoor unit works according to the detected temperature. Intelligent temperature control ensures a more comfortable environment and more precise temperature control, saving energy
