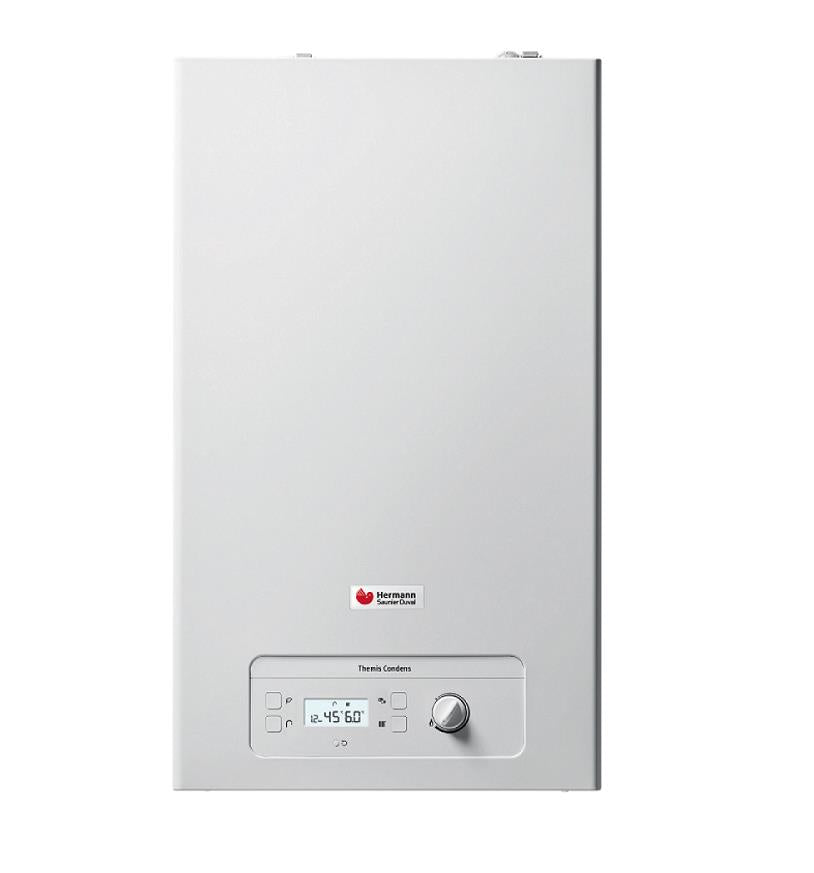

Hermann Saunier Duval Condensing Boiler Themis Condens 24 Kw Low Nox Methane Complete With Fume Exhaust Kit Cod. 0010028067 - New

Hermann Saunier Duval Condensing Boiler THEMIS CONDENS 24 kW low NOx Methane Complete with Smoke Exhaust Kit cod. 0010028067 - NEWS

ErP - Energy class

• Heating efficiency class B
• Sanitary efficiency class A
• Sanitary load profile XL
• CE identification number PIN CE 0476CQ0908

Heating

• Fireplace flow rate Qmin/max - 80/60°C kW 13.0/24.0
• Rated power Pmin/max - 80/60°C kW 12.5/23.04
• Rated power Pmin/max - 50/30°C kW -
• Efficiency Pmax - 80/60°C - 50/30°C % 96.0 / -
• Efficiency P30% - 40/30°C % 99.7
• Cloak losses - Bruc. On - 80/60°C Pmax/Pmin % 0.1/2.3
• Chimney losses - Bruc. On - 80/60°C Pmax/Pmin % 2.2/1.9
• Chimney losses - Bruc. Off - heating/DHW % 0.3/0.7
• Min/max delivery temperature °C 30/85
• Boiler operating pressure min/max bar 0.3/3
• Heating expansion vessel - Capacity/preload l/bar 7/0.75

Sanitary

• Domestic hot water production type Instantaneous
• ACS quality classification (EN 13203-1) 2 stars
• Capacity at the hearth min/max - 60°C kW 13.0/24.0
• Rated power min/max - 60°C kW 12.3/23.2
• Continuous flow rate (∆T= 25K) l/m 13.8
• Specific flow rate (∆T = 30K) (EN13203) l/m 11.4
• Peak flow rate in 10 minutes (∆T = 30K) l/10 min 114
• DHW temperature min/max °C 35/65
• DHW storage heat loss kWh/24h -
• Min/max supply pressure bar -/8

generals

• Gas category II2H
• Supply pressure mbar 20
• Heating gas flow Pmin/Pmax m3/h 2.66
• DHW gas flow rate Pmax m3/h 2.66
• Voltage/frequency/intensity V/Hz/A 230/50/0.66
• Absorption - Peak/Pmax/Pmin/Stand-by W - / - / 60 / -
• Heating flue temp. (50-30°C) Pmin °C 51
• Sanitary fume temp. (DHW T=50°C) Pmax °C 68
• Flue gas heating Pmin/Pmax g/s -
• CO2 Pmax % 7
• Weighted NOx (0% O2) mg/kWh 56.0
• Residual head at the fan Pa -
• IPX 4D electrical protection
• Weight kg 38

Dimensions

THEMIS CONDENS Low NOx - NEW

Wall-mounted condensing boiler for heating and domestic hot water, for high temperature systems.

The new Themis Condens Low NOx is the condensing solution developed by Hermann Saunier Duval to replace traditional wall-mounted boilers combined with radiators that require high inlet temperature values. The main novelty is the low NOx emission burner (class 6) which makes it possible to comply with the ErP regulations in force since November 2018 in the EU. The boiler, which features a renewed casing, is designed to allow easy installation and maximum ease of management, boasting a new extremely intuitive user interface. Themis Condens Low NOx combines the simplicity of the traditional boiler with the efficiency of condensing boilers, guaranteeing the right comfort both in heating and in the production of domestic hot water. It is available in a single model with natural gas supply, power equal to 24 kW in both heating and DHW.

Themis Condens Low NOx is a boiler specifically designed for high temperature systems. It was developed to give the right comfort, both for the production of sanitary water and to provide the ideal climate in the rooms. Themis Condens low NOx combines the simplicity of the traditional boiler with the efficiency of condensing boilers. The range consists of a single model with combined production of domestic hot water and heating, it is available in natural gas only . Condensing boiler with a new forced draft atmospheric burner studied and designed to have low NOx emissions , traditional copper exchanger protected with a special aluminum paint and aluminum post-condenser. The boiler features a new high-efficiency pump with high performance and a 7-litre expansion vessel.

• New burner with low NOx emissions (class 6)
• Designed for replacement in high temperature systems
• New casing with reduced dimensions
• High efficiency pump
• New simple and intuitive user interface

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: B
• gas: Methane
• marca: Hermann Saunier Duval
• metri quadri : 120 sq m
• modello: 0010028067
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
