Hisense
Garanzia Italiana 24 mesi
Classe energetica di riscaldamento: A+
Classe energetica di raffreddamento: A++
SKU: KC 9+12+12+18 105

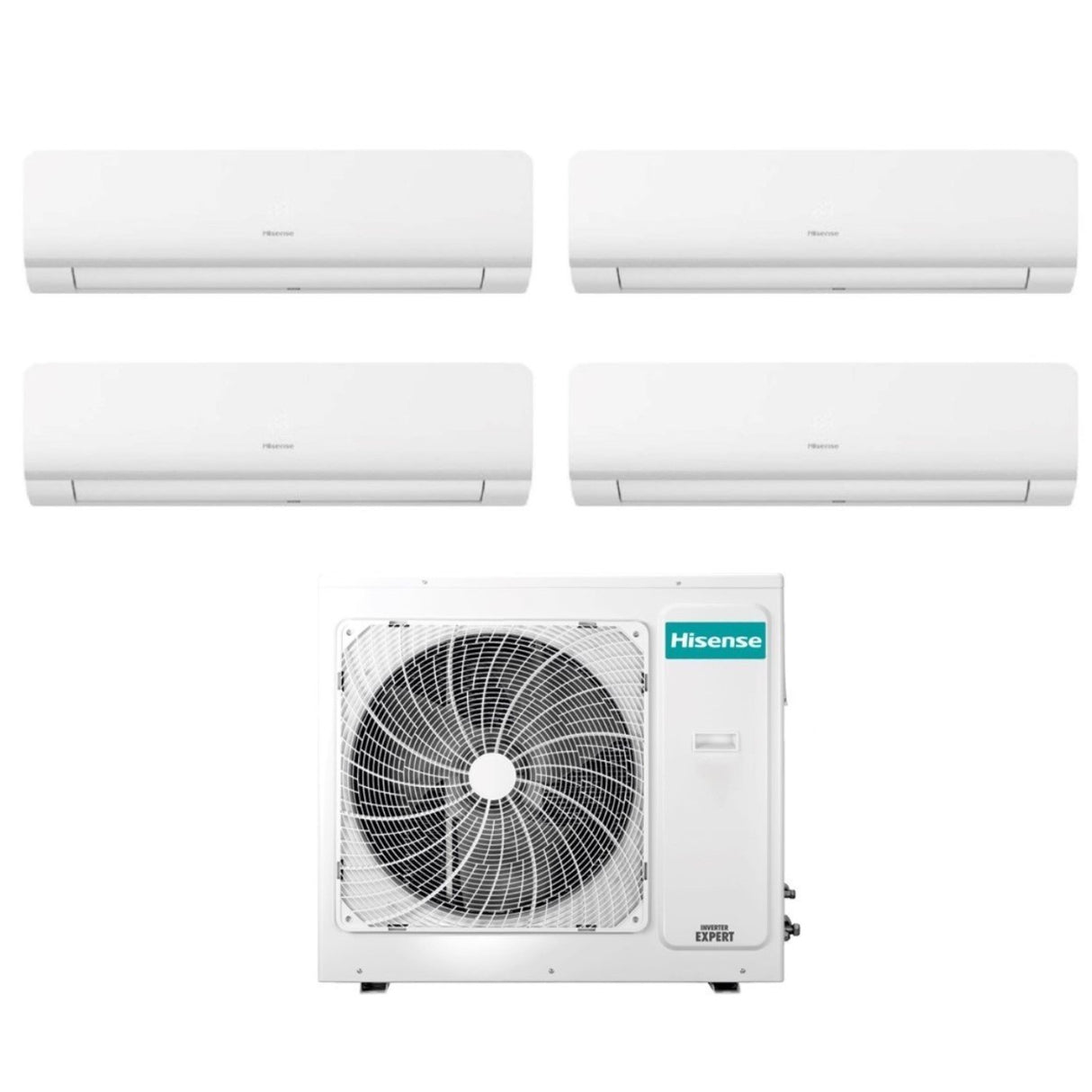

Hisense Quadri Split Inverter Air Conditioner NEW ENERGY series 9+12+12+18 with 4AMW105U4RAA R-32 Integrated Wi-Fi 9000+12000+12000+18000 - New

€2.485,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

  • Standard Shipping: Estimated delivery within 2 to 5 business days
  • Premium Shipping: Guaranteed delivery within 24 business hours
  • Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

    See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

    For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

Technical Features

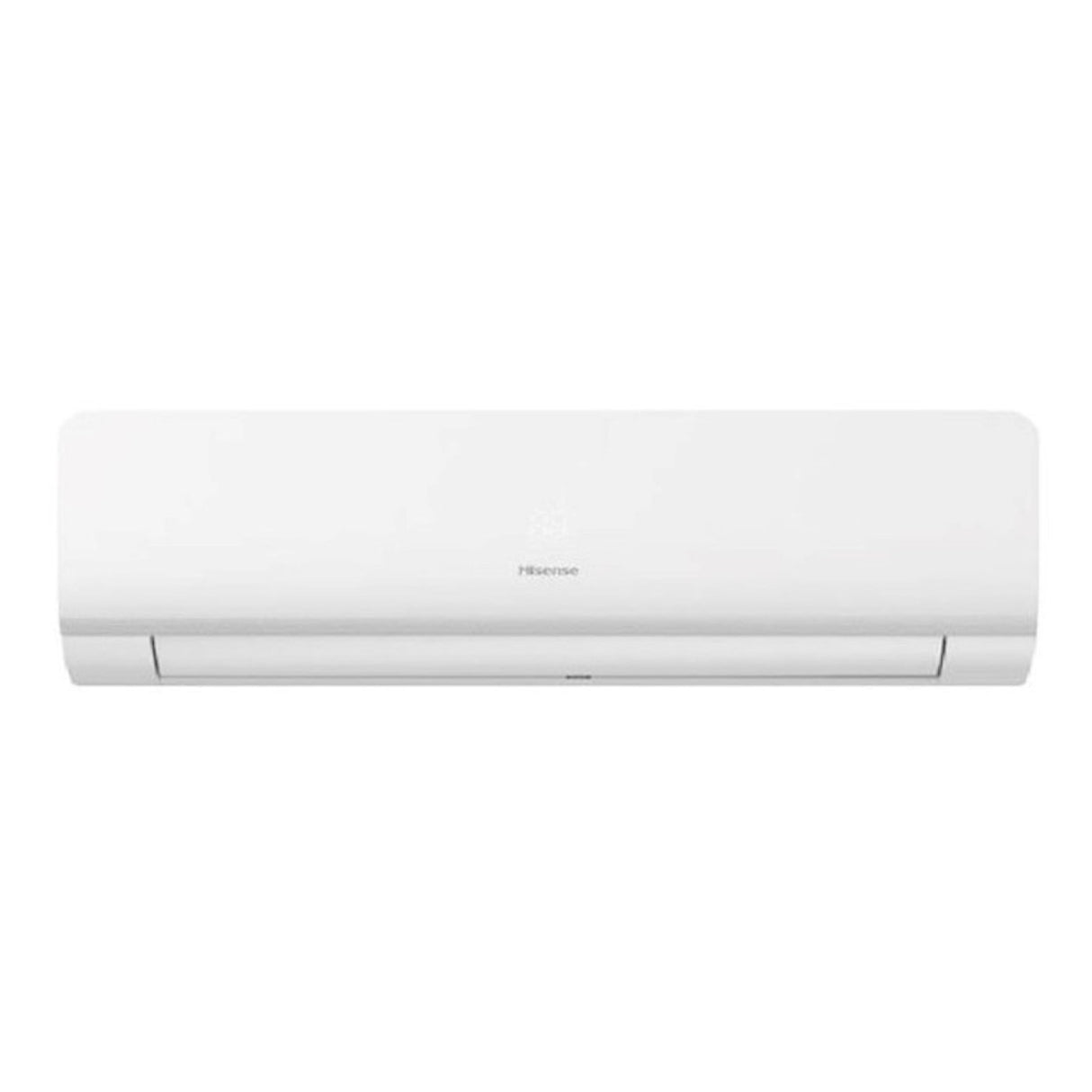

Internal Units

1) Model

  • Internal Unit Catalog Code: 1x KC25MR00G
  • Power: 9000 btu/h
  • Cooling Capacity : 2.6 kW
  • Heating capacity: 2.7 kW
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 822×258×203 mm
  • Built-in Wi-Fi
  • Optional Wired Control (Code YXE-C01U )
  • Voice control with Alexa and Google Home

2) Model

  • Internal Unit Catalog Code: 2x KC35XR00G
  • Power: 12000 btu/h
  • Cooling Capacity : 3.5 kW
  • Heating capacity: 3.8 kW
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 822×258×203 mm
  • Built-in Wi-Fi
  • Optional Wired Control (Code YXE-C01U )
  • Voice control with Alexa and Google Home

3) Model

  • Internal Unit Catalog Code: 1x KC50BS00G
  • Power: 18000 btu/h
  • Cooling Capacity : 5.0 kW
  • Heating capacity: 3.8 kW
  • Liquid Pipe Diameter: 5.4mm (1/4")
  • Gas pipe diameter: 12.70 mm (1/2")
  • Indoor Unit Dimensions (WxHxD): 920×321×227 mm
  • Built-in Wi-Fi
  • Optional Wired Control (Code YXE-C01U )
  • Voice control with Alexa and Google Home

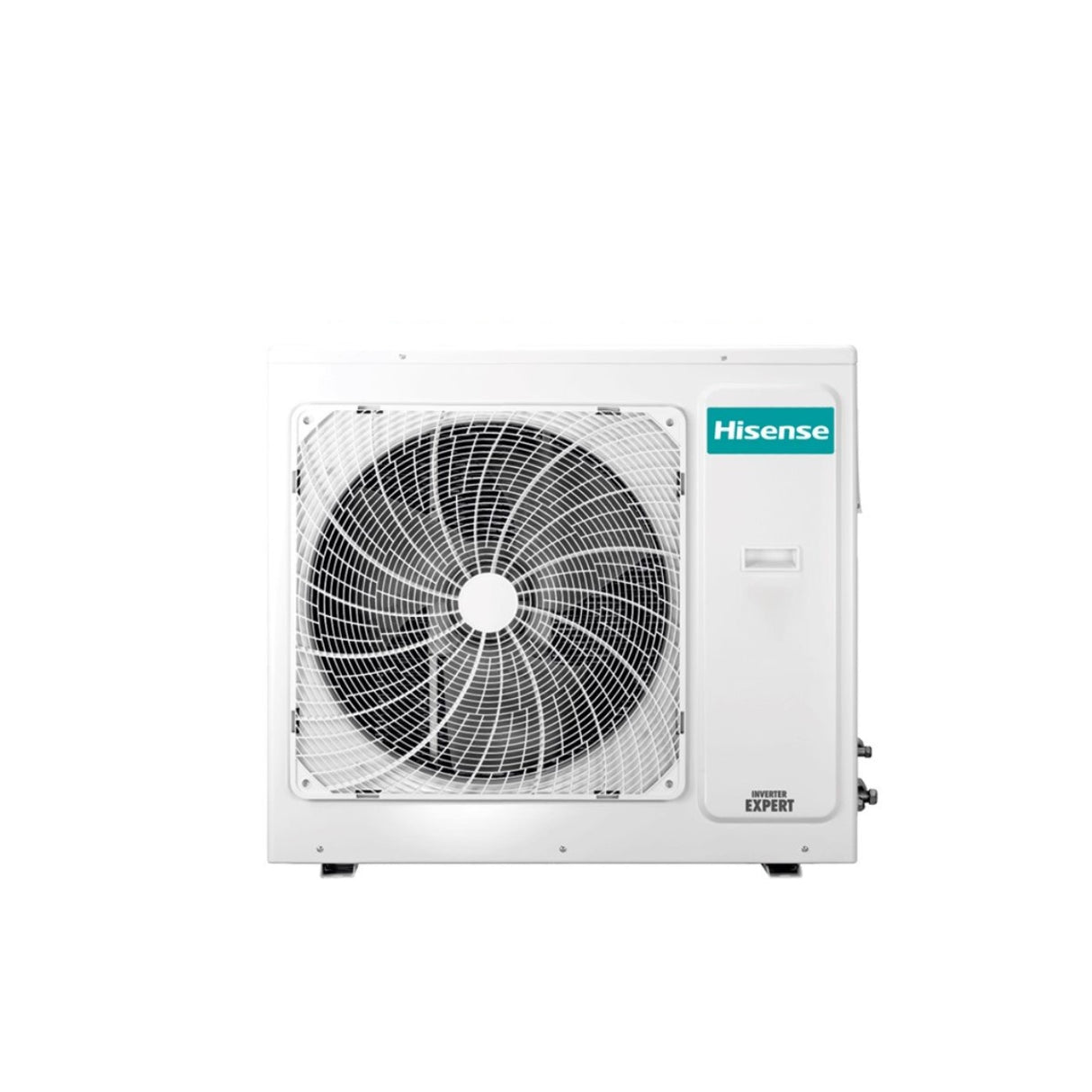

External Unit

Model:

  • External Unit Catalog Code: 4AMW105U4RAA
  • Max indoor units: up to 4 indoor units

Energy Efficiency:

  • SEER : 6.50 (W/W)
  • SCOP : 4.01 (W/W)
  • Energy Efficiency Class in Cooling: A++
  • Energy Efficiency Class in Heating: A+
  • Annual energy consumption Cooling : 538 kWh/a
  • Annual energy consumption Heating: 2793 kWh/a

Performance:

  • Cooling capacity : 10.0 kW
  • Heating capacity: 11.0 kW
  • Std Cooling Absorption: 3.1 kW
  • Std Heating Absorption: 2.8 kW
  • Sound power level: 68 dB(A)
  • Sound pressure level : 54~60 dB(A)

Characteristics:

  • Power supply (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 48° C
  • - Heating: -15° ~ 24° C
Installation Data:
  • Liquid Pipe Diameter: 6.35mm (1/4") x4
  • Gas pipe diameter: 9.52 mm (3/8") x4
  • Maximum Pipe Length: 60 m
  • Maximum height difference between internal unit and external unit: 15 m

Dimensions:

  • External Unit Dimensions (WxHxD): 950×840×340 mm
  • External Unit Weight: 73 Kg

3 year warranty (5 on the compressor)

Warranty

The Hisense Italia warranty can be activated within 1 month from the date of purchase athttp://www.hisenseitalia.it/clima/supporto


Multisplit External Unit Technologies

High Efficiency DC Twin Rotary Inverter Compressor

The design of the new BLDC Inverter double rotor compressor ensures better balance and reduced vibrations. This translates into maximum silence and excellent performance in terms of efficiency and energy saving.


180° sine wave DC drive technology

The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.

Curve control

Driver della curva Hisense


Rubidium magnet compressor

Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption.

Compressore


Electronic expansion valve

The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant in all operating indoor units .

Wide voltage range operation

The outdoor unit can operate with a voltage from 176V to 264V. In the new models, the use of an automatic voltage regulation technique ensures that the protection value is adjusted accordingly, maintaining the operating frequency at an optimal value.

Exchanger design: designed to improve efficiency

The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. Another advantage is that it can support long distance connections between the external unit and the internal units without reducing the cooling capacity.


Hisense New Energy

New Energy


Cutting-edge technologies, elegant design, advanced features and integrated Wi-Fi

Hisense air conditioners can be conveniently managed inside and outside the home with a mobile device and a Wi-Fi connection. HiSmart Life is the simple-to-use app with an intuitive interface that allows you to control the air conditioner wherever you are. The app is available for iOS and Android

Fresh Master


Hisense has also thought about the more “technological” ones

The HiSmart Life air conditioner is one of the jewels of the 2021 catalog. It supports Amazon, Google APP and “speaks” 5 languages: English, French, German, Italian and Spanish.

Google


Wi-Fi Control

Hisense air conditioners can be conveniently managed inside and outside the home with a mobile device and a Wi-Fi connection. HiSmart Life is the simple-to-use app with an intuitive interface that allows you to control the air conditioner wherever you are. The app is available for iOS and Android. After downloading the app and pairing the air conditioner, the app allows you to manage operating modes, temperature, fan speed and air flow. From the "Intelligent Function" section you can also set daily or weekly timers.

Smart Voice Control

The new HiSmart Life app is compatible with Alexa and Google assistant, thanks to voice interaction, it is possible to turn on, turn off, adjust the temperature and set the operating mode (cooling or heating). You can find HiSmart Life in the Alexa Skills and in the Google assistant catalog.


Three-dimensional Airflow

The room temperature remains constant thanks to the combination of automatic vertical and horizontal oscillations of the fins. The air is distributed uniformly throughout the room, reaching every corner, even in the largest rooms.


Universal unit for mono and multi systems

Universal internal units can be connected to Monosplit and Multisplit external units to ensure maximum installation versatility


Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Technical Data Sheet

  • peso: 100.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Hisense
  • modello: KC 9+12+12+18 105
  • potenza btu: 9000+12000+12000+18000
  • superficie riscaldabile mq: 25/35/35/50
