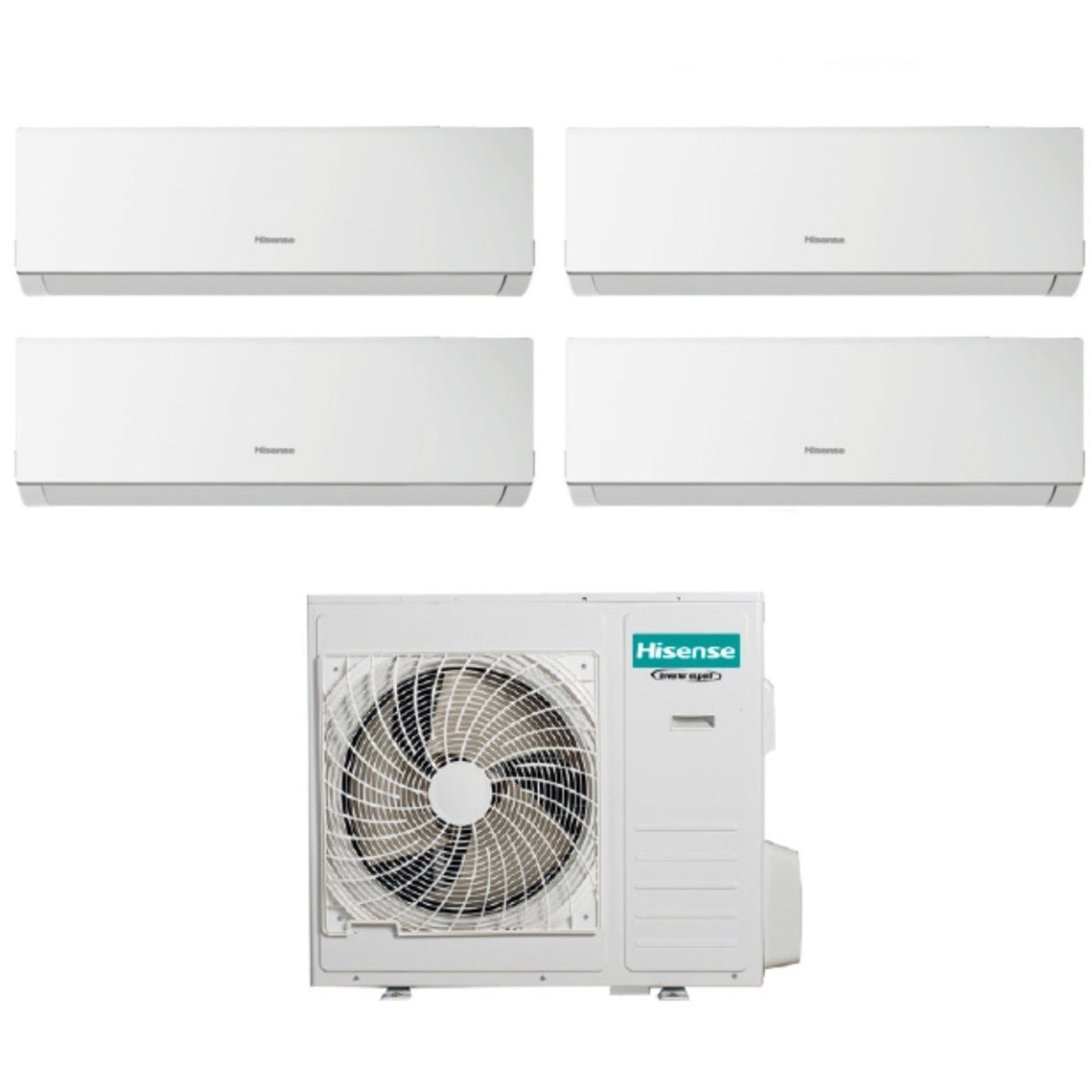

Hisense Quadri Split Inverter Air Conditioner NEW COMFORT Series 12+12+12+18 with 4AMW105U4RAA R-32 Wi-Fi Optional 12000+12000+12000+18000

Technical Features

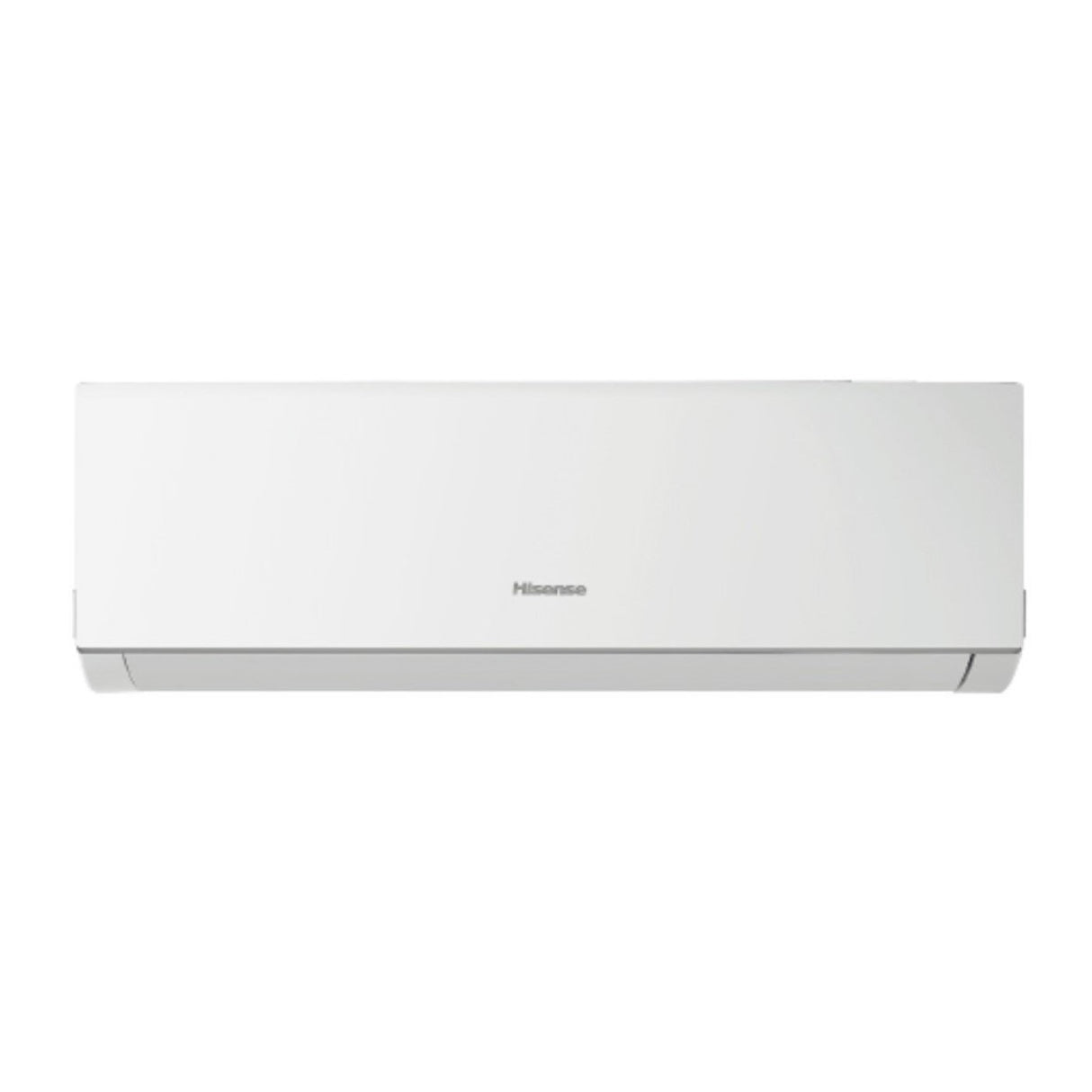

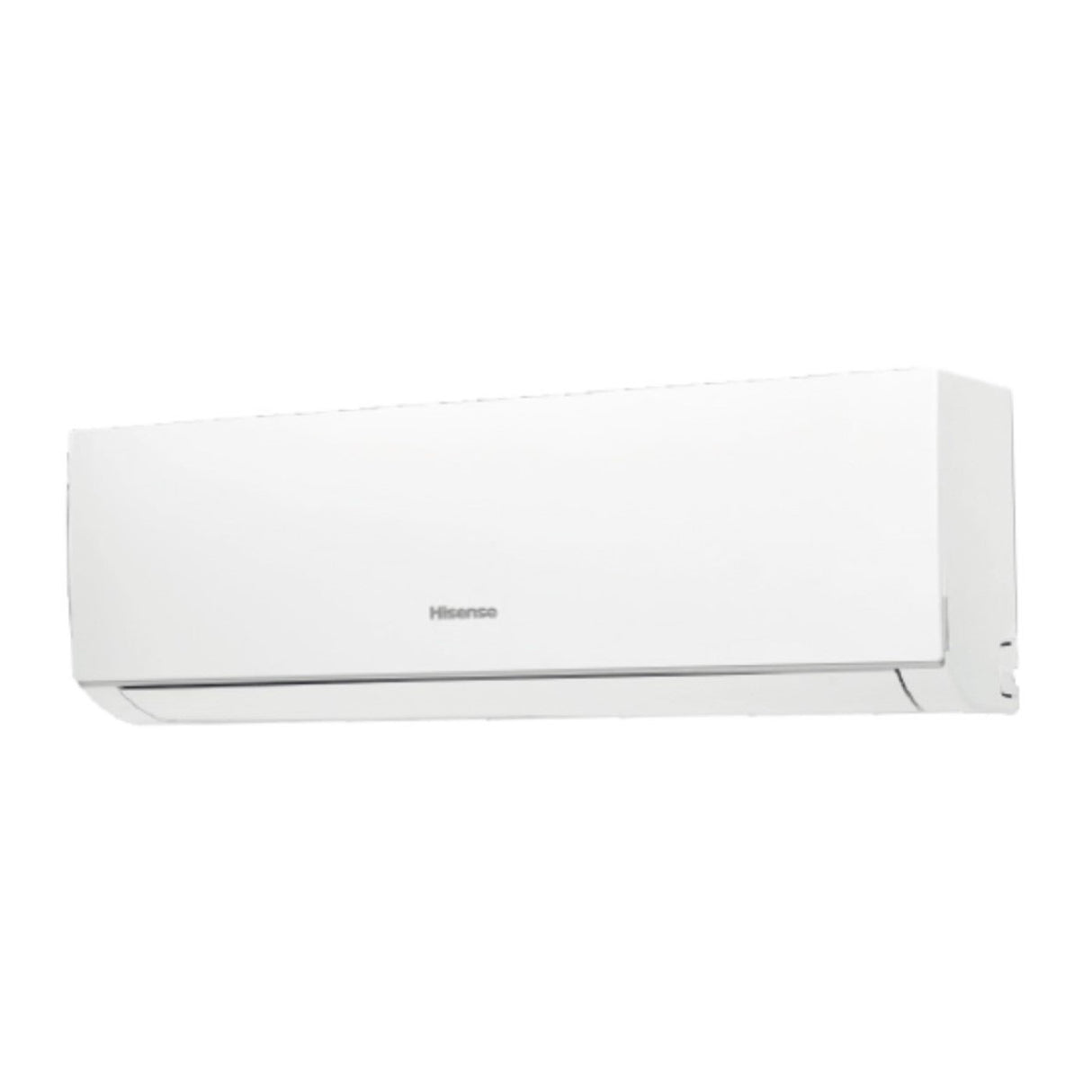

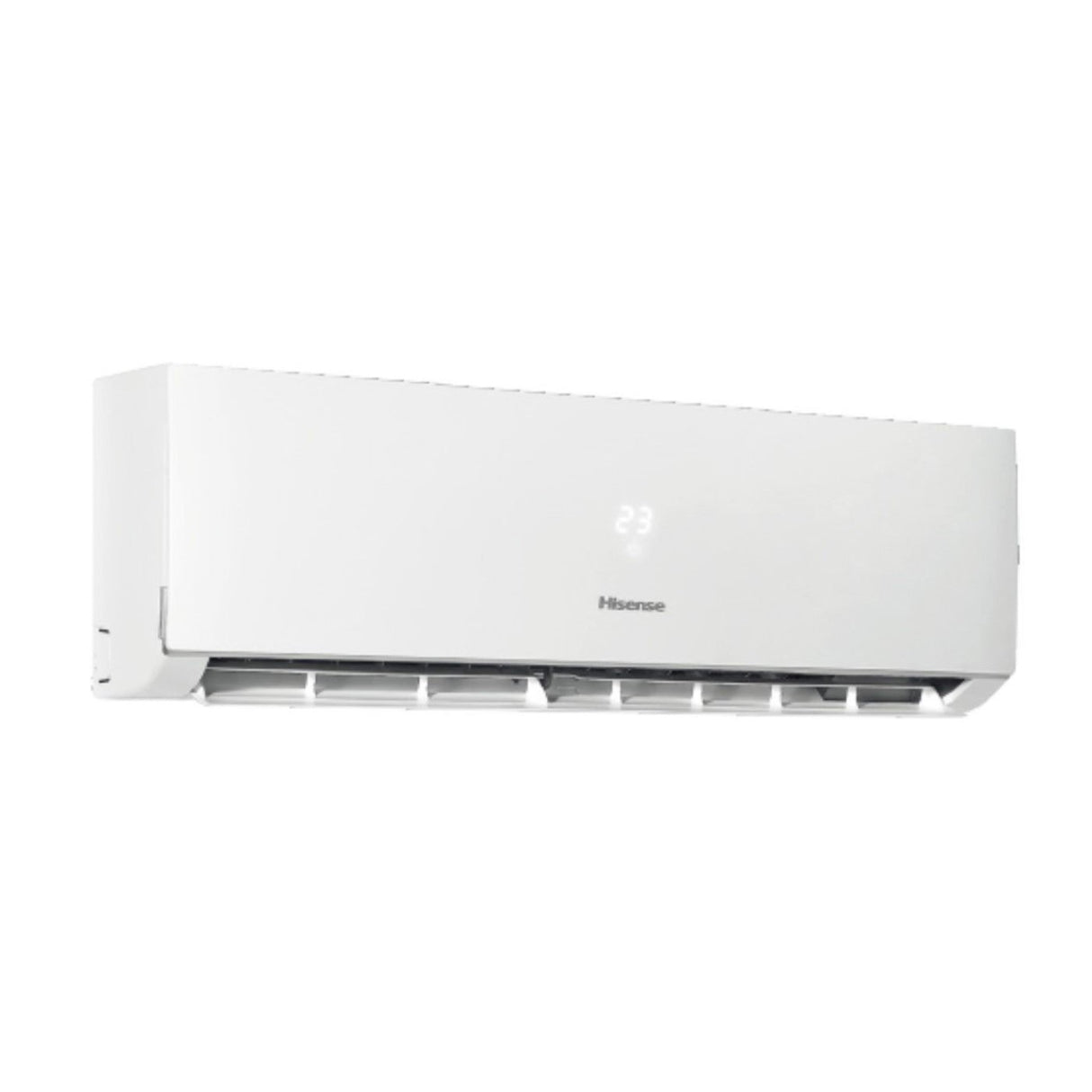

Internal units

1) Model

• Internal Unit Catalog Code: 3x DJ35VE0AG
• Power: 12000 btu/h
• Cooling Capacity : 3.5 kW
• Heating capacity: 4 kW
• Power consumption: 44 W
• Rated Current : 0.2A
• Treated Air: 10 ^m3 /min
• Sound pressure level : 19~40 dB(A)
• Liquid Pipe Diameter: 6.35mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions (WxHxD): 815×275×210 mm
• Internal Unit Weight: 8.5 Kg
• Optional Wi-Fi Card (Code AEH-W4E1 )
• Optional Wired Control (Code YXE-C01U )

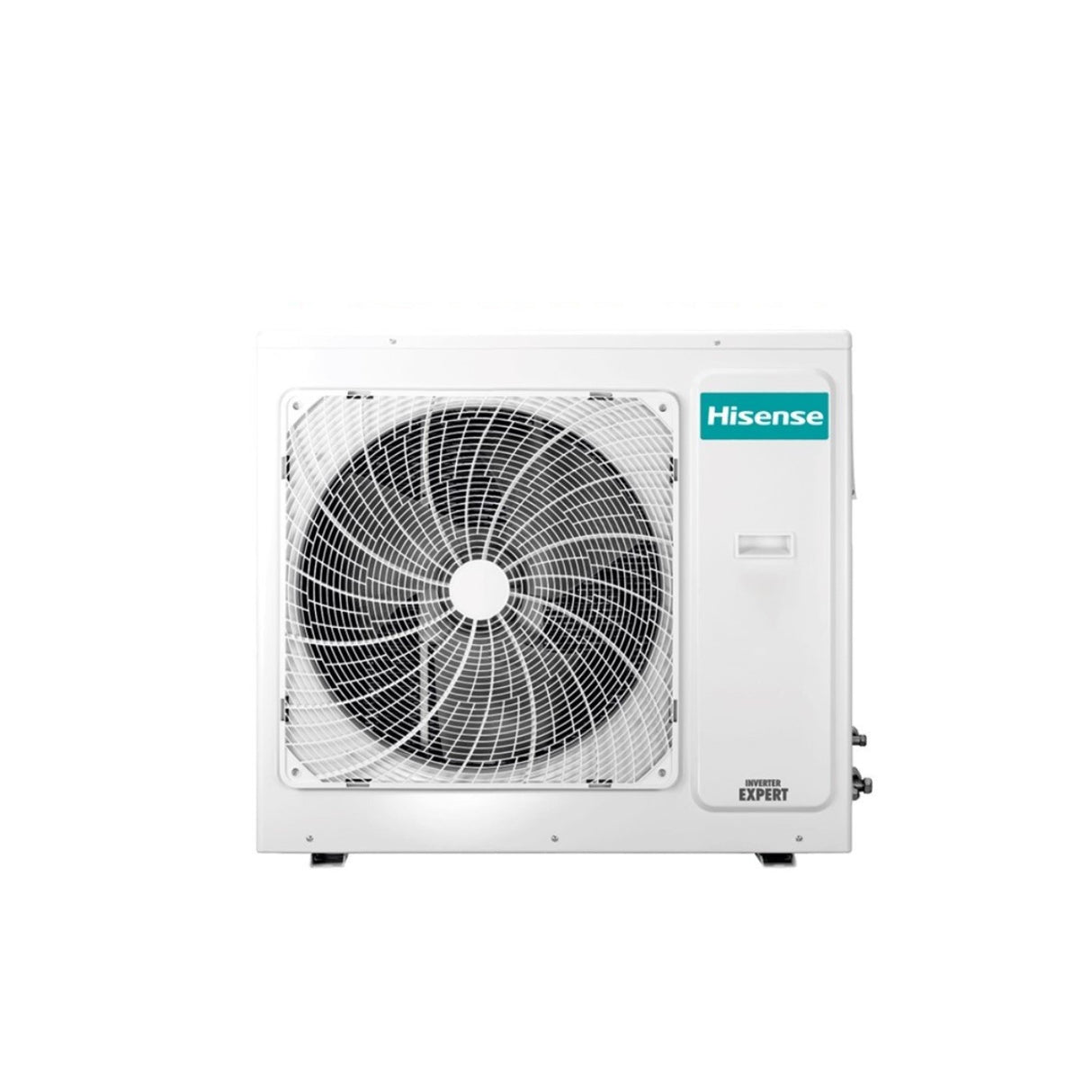

External Unit

Model:

• External Unit Catalog Code: 4AMW105U4RAA
• Max indoor units: up to 4 indoor units

Energy Efficiency:

• SEER : 6.50 (W/W)
• SCOP : 4.01 (W/W)
• Energy Efficiency Class (Cooling): A++
• Energy Efficiency Class (Heating): A+
• Annual energy consumption Cooling/Heating : 538/2793 kWh/a

Performance:

• Cooling capacity: 10 kW
• Heating capacity: 11 kW
• Std Cooling Absorption: 3.1 kW
• Std Heating Absorption: 2.8 kW
• Sound power level: 68 dB(A)
• Sound pressure level : 54~60 dB(A)

Characteristics:

• Power supply (V/Hz/Φ) : 220~240/50/1
• Refrigerant gas: R-32
• Liquid Pipe Diameter: 6.35mm (1/4") x4
• Gas pipe diameter: 9.52 mm (3/8") x4
• Guaranteed temperature range:
• - Cooling: -15°~48°C
• - Heating: -15°~24°C

Dimensions:

• External Unit Dimensions (WxHxD): 950×840×340 mm
• External Unit Weight: 73 Kg

3 year warranty (5 on the compressor)

The Hisense Italia warranty can be activated within 1 month from the date of purchase athttp://www.hisenseitalia.it/clima/supporto

Multisplit External Unit Technologies

High Efficiency DC Twin Rotary Inverter Compressor

The design of the new BLDC Inverter double rotor compressor guarantees better balance and reduced vibrations. This translates into maximum silence and excellent performance in terms of efficiency and energy saving.

180° sine wave DC drive technology

The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.

Curve control

Rubidium magnet compressor

Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption.

Electronic expansion valve

The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant in all operating indoor units .

Wide voltage range operation

The outdoor unit can operate with a voltage from 176V to 264V. In the new models, the use of an automatic voltage regulation technique ensures that the protection value is adjusted accordingly, maintaining the operating frequency at an optimal value.

Exchanger design: designed to improve efficiency

The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. Another advantage is that it can support long distance connections between the external unit and the internal units without reducing the cooling capacity.

Hisense Italia offers the New Comfort air conditioner with high performance, excellent comfort and elegant design.

5 Fan Speed ​​Levels

Universal unit for mono and multi systems

Universal indoor units can be connected to Monosplit and Multisplit outdoor units to ensure maximum installation versatility.

Easy Installation

The New Comfort models are easy to install thanks to the new design of the internal unit and mounting plate.

1. The mounting plate is equipped with two tabs that allow the indoor unit to be spaced away from the wall to provide more usable space when connecting the pipes.

2. The panel located on the bottom of the indoor unit is easily removed to ensure convenient access to the pipes

3. You can choose the side to connect the condensate drain pump according to your installation needs.

---

I Feel

The internal sensor of the remote control is able to detect the surrounding temperature and transmit this information to the internal unit , which will adapt its operation based on it to ensure maximum comfort.

4 Filters in 1

• Vitamin C Filter - The Vitamin C filter releases vitamin C into the air. Vitamin C penetrates your skin, providing protection from ultraviolet rays, retaining active oxygen and promoting collagen production.

• Silver Ion Filter - The silver ion filter eliminates bacteria in the air and controls the growth of microbes such as bacteria, viruses, fungi and spores by destroying their internal configuration and absorbing their cellular elements.

• Photocatalyst Filter - The photocatalyst filter eliminates prickly pears and other germs. This filter also eliminates odors with deodorizing properties equal to 500 activated carbon deodorants.

• Catechin Filter - The catechin filter removes odors and eliminates dirt and particles in the air and room.

• HEPA Filter - HEPA filter effectively removes pollen, mill dust, pneumobacillus, giving you fresh and healthy air.

• Aroma Filter - This air conditioner filter will make your room smell heavenly when you add your favorite scent to the aroma filter.

---

Characteristics

---

Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 100.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Hisense
• modello: DJ 12+12+12+18 105
• potenza btu: 12000+12000+12000+18000
• superficie riscaldabile mq: 35/35/35/50
