Gas Boiler Fondital Panarea Compact Ctn 24 Af Methane With Open Chamber
Gas Boiler Fondital Panarea Compact Ctn 24 Af Methane With Open Chamber is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:
- Standard Shipping: Estimated delivery within 2 to 5 business days
- Premium Shipping: Guaranteed delivery within 24 business hours
- Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours
See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.
For more details on Premium Shipping, please visit the Premium Shipping page.
Customer service
Customer service
Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.
Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.
Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.
Description
Description

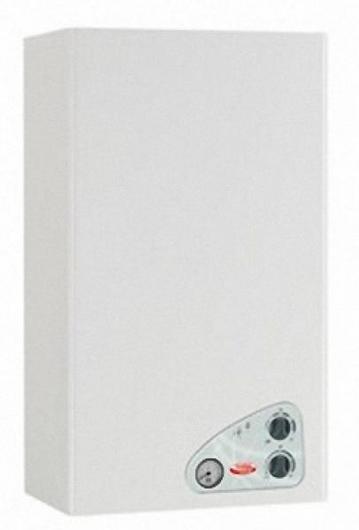

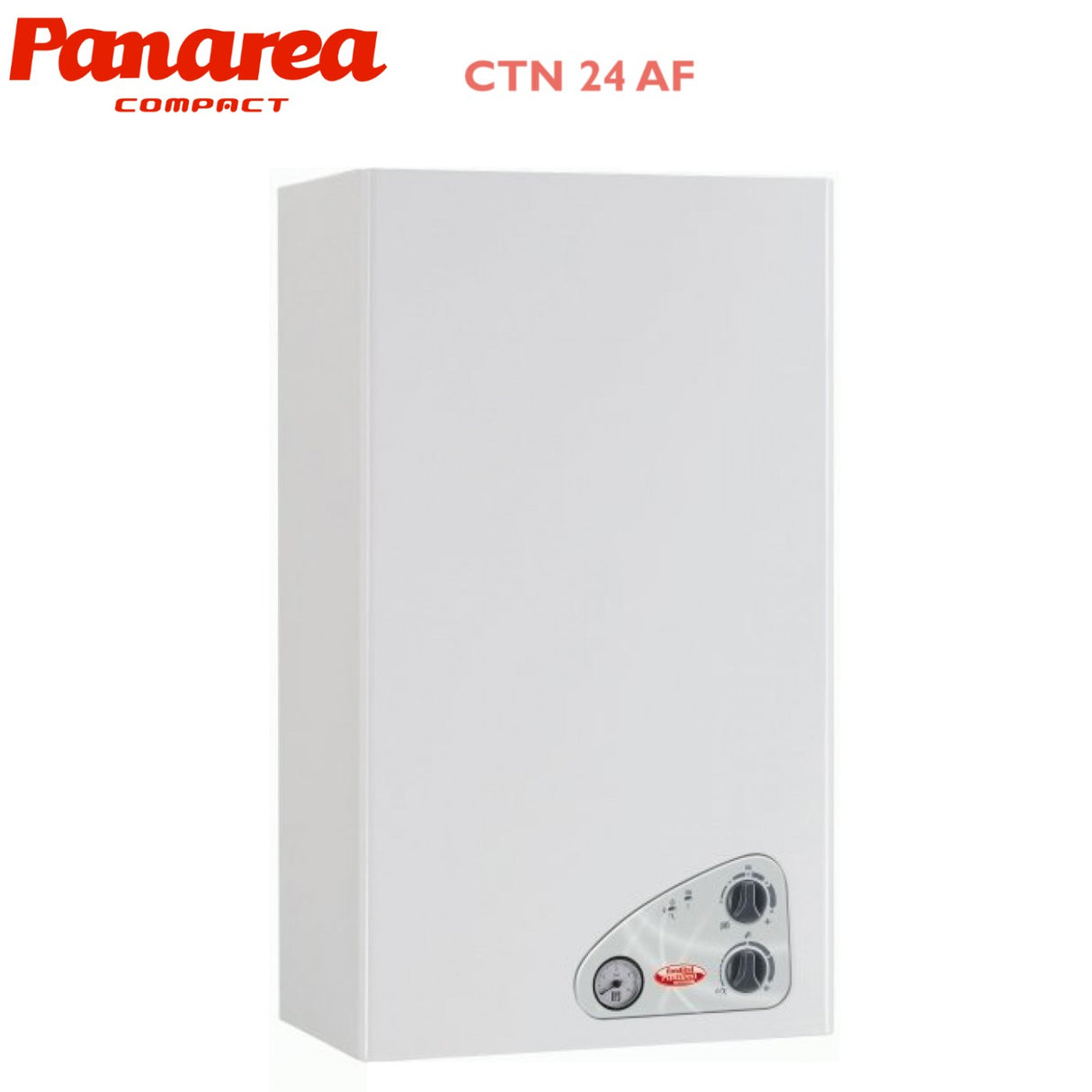

FONDITAL PANAREA COMPACT CTN 24 AF METHANE OPEN CHAMBER GAS BOILER
Characteristics of heating/DHW operation:
- Open chamber with natural draft
- Nominal heat output: 23 kW
- Efficiency at maximum power: 90.6%
- Efficiency at 30% load: 89.4%
- Classification according to 92/42/EEC: **
- NOx class (EN 297/EN 483); 2
- Min-max sanitary pressure: 0.5 - 6 bar
- Heating temperature adjustment °C 35-78
- Expansion vessel capacity: 7 l
- DHW production ∆t 30°C: 11.2 l/min
- Total absorbed electric power: 57 W
- Degree of protection of the electrical panel: IPX5D
- Dimensions (hxlxp) 420x750x315 mm; 36kg
- METHANE power supply
- Warranty: 2 years
FORMENTERA CTN
Formentera CTN is a wall-hung instantaneous combined gas boiler with open chamber and natural draft. The gas boiler is equipped with a touch screen user interface and is set up to be powered by methane or LPG.
Pluses:
- Touch screen user interface
- Boiler room temperature adjustment with external probe
- Sanitary heat exchanger with 26 plates
- Standard management of three types of solar thermal system
- Boiler change kit
Characteristics:
- High efficiency circulator with built-in deaerator
- Standard management of 3 types of solar thermal system
- Monothermal primary heat exchanger
- Sanitary heat exchanger with 26 stainless steel plates
- Integrated hydraulic unit including automatic by-pass, safety valve, pressure transducer, drain cock and connection to the expansion tank
- Integrated electronic board for safety and flame modulation
- Sliding temperature operation with external probe (optional)
- Management of high and low temperature heating zones, via electronic board (optional)
- Efficiency classification according to 92/42/EEC: ★★
- Multifunction relay for connection to systems with zone valves or solar system or remote alarm signalling
Dimensions
Dimensions (LxHxP): 400x700x250 mm
Weight: 25.2kg
Product Guarantee
All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
Technical Data Sheet
Technical Data Sheet
- peso: 35.0 kg
- marca: FONDITAL
- modello: CALD_19240
