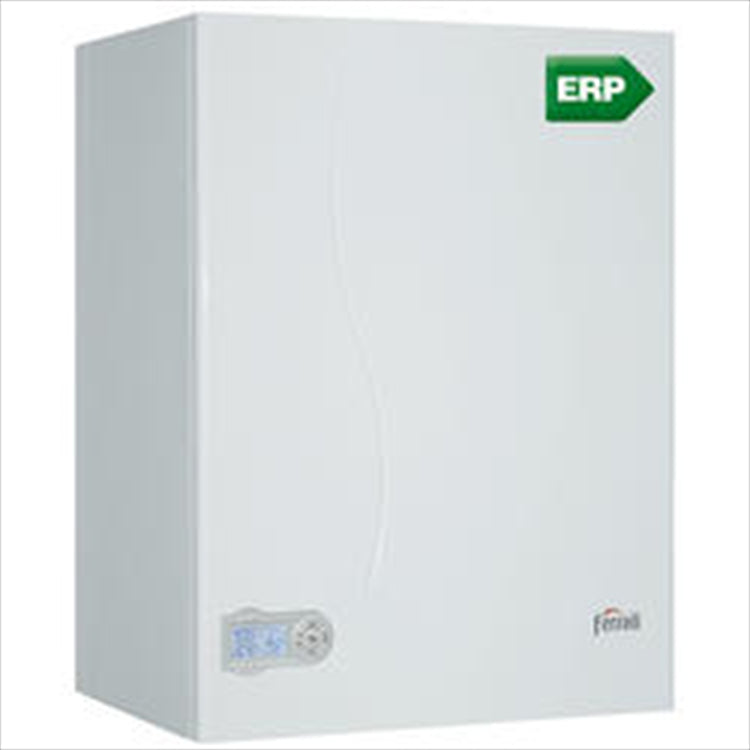

Gas Boiler Ferroli Divatop 60 C24 Open Chamber Methane New Erp

FERROLI DIVATOP 60 C24 OPEN CHAMBER GAS BOILER METHANE NEW ErP

Technical features

Characteristics:

• Heating max heat input kW 25.8
• Minimum heating heat input kW 11.5
• Max DHW heat input kW 25.8
• Minimum DHW heat input kW 11.5
• Directive efficiency class 92/42 EEC ★★
• NOx class 3
• Max. heating operating pressure bar 3
• Max heating temperature 90 °C
• Heating expansion vessel capacity 8 litres
• Max working pressure san. bar 9
• Sanitary flow rate ∆t 30°C l/h 740
• IP X5D degree of protection
• Supply voltage V/Hz 230V/50Hz
• Electric power absorbed W 59
• DHW absorbed electrical power W 59

Dimensions HxW : 800 x 600

Certified operation also with LPG using a special kit to be requested from the Authorized Assistance Centre

DIVATOP C60

STRENGTHS

• 60-litre rapid exchange storage tank in AISI 316 stainless steel
• Two low consumption circulators for the heating system and for the storage coil
• Exclusive compact geometry heat exchanger entirely in copper
• Combustion chamber in anti-corrosion aluminized sheet metal, internally insulated with ecological fibre
• Intake air burner, with AISI 304 stainless steel ramps, electric ignition without pilot flame, with microprocessor flame ionization current detection safety device
• Modulating heat input in both heating and DHW production
• Standard by-pass
• Standard 2-litre sanitary expansion tank
• Use of digital microprocessor electronics for flame regulation and safety
• Flow temperature scrolling with external probe (optional)
• Possibility of connection to the remote timer control (optional)

ADVANTAGES OF DIVATOP 60:

• Place of installation: also for outdoors in a partially protected place up to -10°C as standard, with the addition of the wind protection kit
• Robust casing in white painted steel, which can be individually disassembled on the three sides of the product for easy access to the internal parts
• Arrangement of the internal organs in such a way as to be easily accessible directly from the front casing, so as to ensure, in case of need, the greatest ease of intervention
• Ease of use thanks to a complete user interface, multifunctional display with graphic symbols for immediate reading
• Perforated grid to cover the connections supplied as standard
• Also works on LPG with the use of a special conversion kit to be requested from the Authorized Assistance Centre. Free transformation during product verification and activation of the guarantee only if the specific code running on LPG is not available
• Operation certified also with propane air (50% air - 50% G31) by means of a specific transformation to be requested from the Authorized Assistance Center
• Quick and easy installation thanks to the hydraulic connections well spaced from the wall

Warranty The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• marca: Ferroli
• modello: CALD_18794
