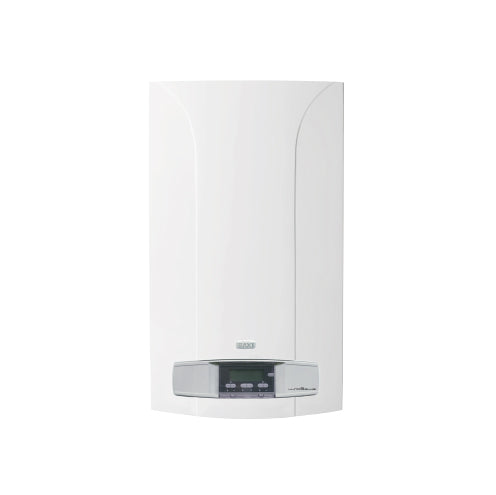

Baxi Luna3 Blue+ 240i LPG Or Methane Open Room Boiler - New Erp

ATTENTION THE BOILER IS BORN WITH METHANE. FOR CONVERTING TO LPG, CONTACT THE AUTHORIZED AREA SERVICE CENTER IN ADVANCE

BAXI LUNA3 BLUE+ 240I CNG OR LPG BOILER - NEW ERP

Technical features

• ErP energy efficiency class (heating and DHW): C - B
• Load profile: XL
• Open chamber with natural draft
• Heating/DHW nominal heat output kW 24
• Nominal direct efficiency: 90.3%
• Heating circuit temperature range °C 30/85
• Sanitary water temperature adjustment °C 35-60
• Sanitary water production ∆T 25°C l/min 13.7
• Minimum domestic water flow rate I/min 2
• Degree of protection IPX5D
• Dimensions (hxwxd): 763x450x345 mm ; 33 kgs
• Power supply: CNG or LPG

Luna3 Blue+

Wall mounted compact gas boiler, natural draft - heating only and DHW production (low NOx)

Luna3 Blue+ is the Baxi compact natural draft boiler ideal for replacement. The extremely compact dimensions make this boiler particularly ideal for replacing old natural draft generators connected to branched collective flues, the only installation context allowed by the ErP directive for traditional open chamber boilers.

The ErP/EcoDesign regulation in force since 26 September 2015 has forced manufacturers to place on the market products equipped with a high-efficiency pump (since 1 August 2015), which comply with the eco-compatible design requirements and bear an energy label. The legislation also provides that by way of derogation, producers can continue to produce and commercialize ONLY open chamber boilers for installations in domestic contexts, with the restriction of replacement in branched collective flues. Baxi's ranges of conventional B1-type natural draft boilers are precisely designed to meet all installation requirements in branched collective flues.

Characteristics:

• Low NOx and CO emissions: class 5 according to EN 297 and EN 483 already compliant with the legislation that will come into force in 2018
• Hydraulic group in brass
• Control panel with multifunction LCD display
• STANDARD climate control (with optional external probe)
• Arrangement for combination with the Baxi integrated solar system
• High efficiency circulation pump
• Antifreeze function and IPX5D degree of protection

Product Guarantee
All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe efficienza energetica: B
• classe energetica produzione acs: B
• classe energetica riscaldamento: C
• gas: Methane
• marca: Baxi
• metri quadri : 120
• modello: CALD_4055
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
