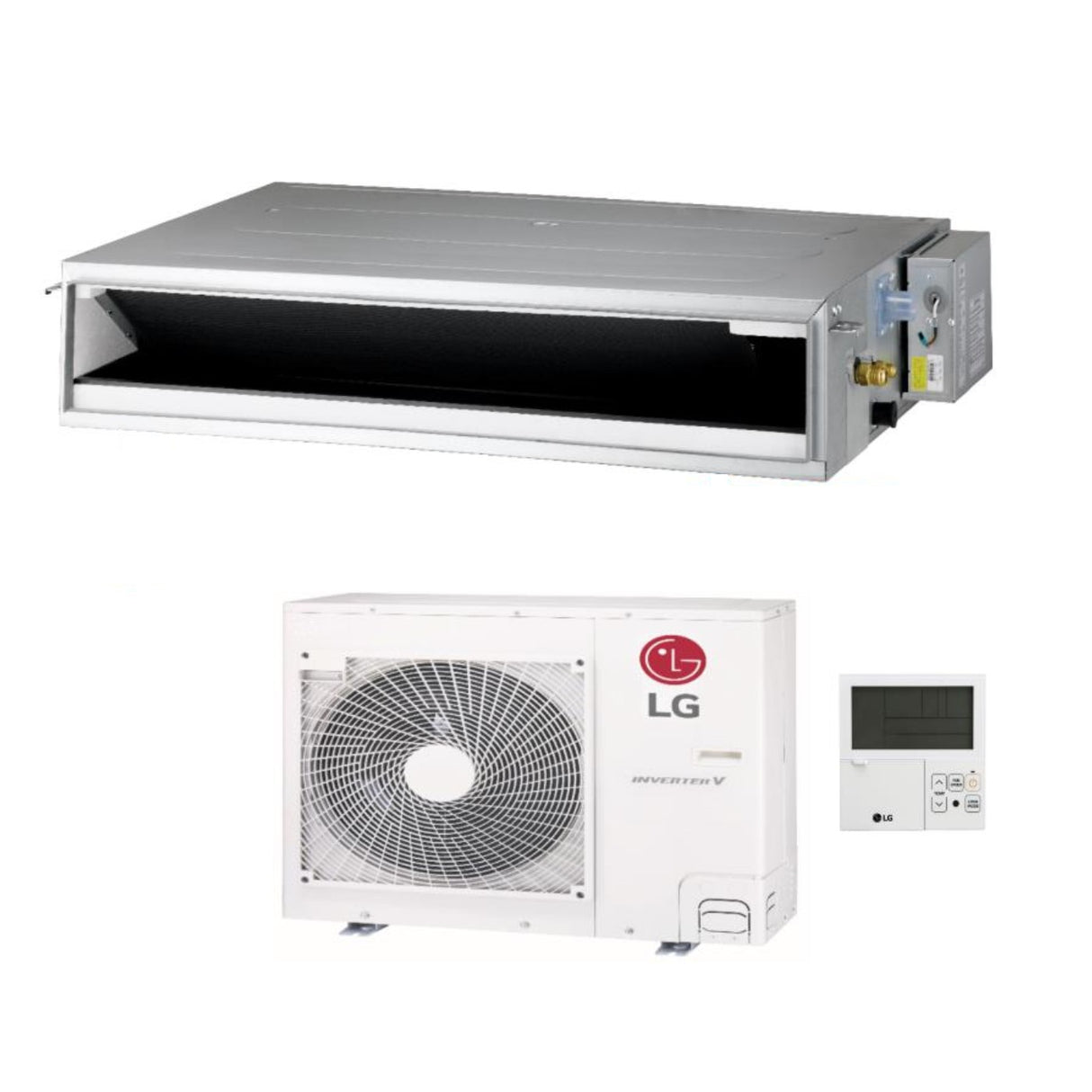

LG Ducted Air Conditioner 24000 Btu CL24R N30 R-32 A++/A+ Wi-Fi Optional

LG Ducted Air Conditioner 24000 Btu CL24R N30 R-32 A++/A+ Wi-Fi Optional

Technical Features

Model:

• Indoor unit model : CL24R.N30
• Outdoor unit model : UU24WR.U40
• Power: 24000 btu

Energy Efficiency:

• SEER: 6.60
• SCOP: 4.20
• Energy Efficiency Class (Cooling): A++
• Energy Efficiency Class (Heating): A+
• Std Cooling Capacity : 4.00 / 7.10 / 7.70
• Cooling power consumption (Min/Nom/Max) kw: 2.15
• Std Capacity In Heating: 2.00 / 7.50 / 8.20
• Heating power consumption (Min/Nom/Max) kw: 2.06

Performance:

• Current consumption (Cooling/Heating): 9.5 / 9.1 (A)
• Sound Power Level UI dB(A): 58
• Sound Pressure Level UI dB(A): 39 / 35 / 32 (Min-Med-Max)
• Ventilation capacity: 15.0 / 12.5 / 10.0 m3/min
• Power supply: 1/ 220-240/50
• Sound Pressure Level EU dB(A): 48/52

Characteristics:

• Refrigerant gas: R-32
• Liquid / gas pipe diameter mm: (3/8) / (5/8)
• Max height difference UI / UE: 30m

Dimensions and weight:

• Internal Unit WxHxD (mm): 1,100 x 190 x 700; 27 kg
• External Unit WxHxD (mm): 950 x 834 x 330; 56.2 kg
• Complete with wired control

General Features

LG DUCTED

Reduced height

The new high prevalence ducted units represent the ideal solution for installations in small spaces

Linear regulation of fan prevalence (ESP)

The prevalence of the unit's fans can be changed linearly, through a simple selection procedure, which can be managed through the wired control. Through this adjustment, it is possible to change the rotation speed of the indoor unit's fan and associate the machine with ducts of various developments.

Easy maintenance and service

There is no need to open the entire panel for maintenance or repairs, as the panel is divided into a heat exchanger panel and a motor/fan panel. The filter is easily removable and can be repositioned even in limited spaces.

Condensation drain pump

It is used for automatic condensation drainage, when the latter cannot occur by gravity. The possibility of lifting the condensation by 700mm guarantees the solution to any problem.

Double thermistor control

When using the wired control, the room temperature in the rooms can be detected in 3 different ways:

from the sensor located in the wired control.

from the sensor on the unit

from both sensors, using the lower of the two detected as the reference value.

The combined double thermistor control can optimize the internal air temperature, for a more comfortable environment.

Possibility of air conditioning multiple rooms at the same time.

Using suitable spiral ducts (built-in or flexible) and a flow chamber, it is possible to operate in cooling/heating mode for multiple rooms simultaneously using a single internal unit. Zone control features: • Control of multiple areas (more than 4) with external thermostat • Maintains constant volume of clean air in each area • Self-regulation of ventilation speed and on/off operations.

Maximum silence

The noise level of the low-head ducted units has been considerably reduced, whilst increasing the useful static head.



Quick and easy installation

In low-head ducted units, it is possible to choose the direction of air intake, from below or from the back. This simplifies installation and makes it possible even in applications with small spaces.

Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 80.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: LG
• metri quadri : 60 - 80 m2
• modello: CL24R.N30_UU24WR.U40
• potenza btu: 24000
• superficie riscaldabile mq: 70
