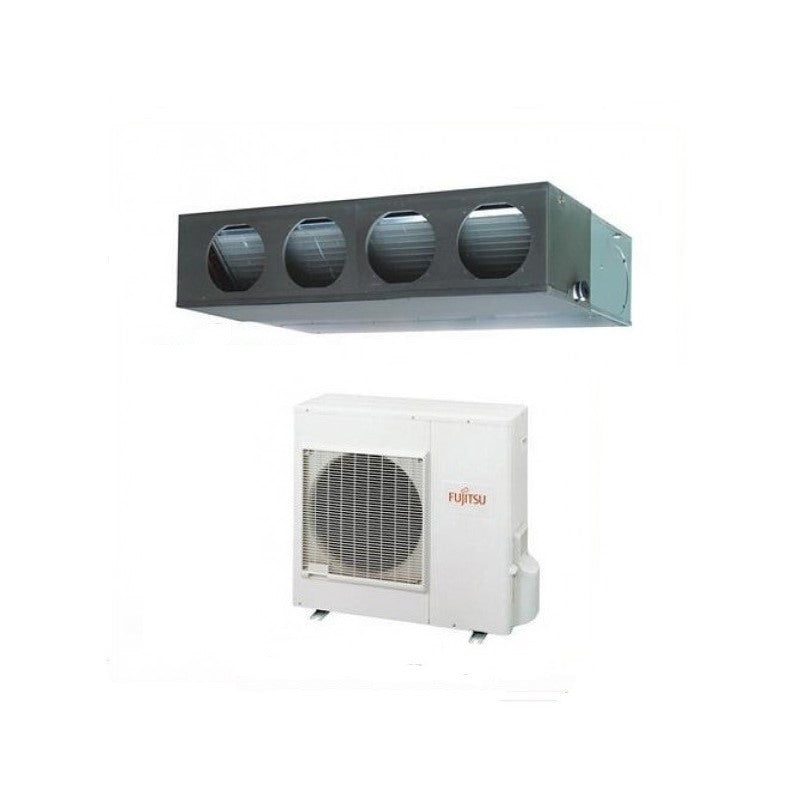

Fujitsu Air Conditioner Ducted Ductable Inverter Series Lm Aryg36lmla A+ Lm 36000 Btu

Overview

FUJITSU SPLIT AIR CONDITIONER DUCTED INVERTER LM series ARYG36LMLE A+ 36000 BTU.

Technical specifications

Model:

Internal catalog code: ARYG36LMLE

Typology : DC Inverter

Energy efficiency:

SEER/EER (W/W): 5.80

SCOP/COP (W/W): 3.80

Seasonal Energy Efficiency Class (Cooling) : A+

Seasonal Energy Efficiency Class (Heating) : A

Energy consumption year Cooling kWh/a: 578

Energy consumption per year Heating kWh/a: 3202

Power (BTU) : 36000

Performance:

Dehumidification l/h: 3.0

Nominal capacity Cooling (kW): 9.4

Nominal heating capacity (kW): 11.2

Absorbed power in Cooling (kW): 2.96

Power absorbed in heating (kW): 3.10

Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 39/35/30/26

Indoor unit sound power dB(A): 65

External unit sound pressure (max) dB(A): 54

Outdoor unit sound power (max) dB(A): 69

Electrical data:

Power supply (V/Hz/?) : 230/50/1

Characteristics:

Refrigerant gas : R410A

Pipes for liquid/gas connections (mm): 9.52/15.88

Piping Max. length IU/UE: 50 metres

Piping Max difference in level U.I.- UE/UI-UE: 30 metres

Operating range:

-Cooling: -15~46 øC

-Heating: -15~24 øC

Dimensions:

Indoor Unit HxLxP (mm) : 270 x 1135 x 700 ; 40kg

Outdoor Unit HxLxP (mm): 830 x 900 x 330 ; 61kg

Main features

LM series

Inverter Technology

Partial power works for 90% of the air conditioning times. Fujitsu air conditioners, on the other hand, thanks to DC inverter technology and high-efficiency electronic controls, guarantee efficiency levels and excellent performance in all environmental conditions.

Energy classification

Provisions 626 /2011/ EU on the new energy labeling: Our products have reached the classification of "Class A", the highest level of energy efficiency indicated on energy labels in Europe.

Compact and slim models

The extremely limited thickness of the internal units allows installation in all those cases where the space in the false ceiling is very reduced. In addition, the location of the vanschede allows for easy access to the connections.

Easy maintenance

The structural improvement of these models includes the division into two parts (front and rear) of the lower panel. In this model the maintenance of the motor and the fan is easier and can be done completely from the bottom of the unit.

Features list

Comfort Performance

The large surface area of ​​the heat exchanger, the DC rotary compressor and the innovative inverter system guarantee a high heating capacity even with low outside temperatures.

Automatic switching function The air conditioner switches automatically from heating to cooling (and vice versa) according to the required room temperature.

Energy saving: Control function for energy saving

Can be connected to a duct distribution system and to an external air supply system

Warranty

All products for sale on our site are new and packed. The guarantee on this item is 24 months from the date of purchase.

• peso: 100.0 kg
• gas: R-32
• marca: Fujitsu
• modello: ARYG36LMLA
• potenza btu: 36000
• superficie riscaldabile mq: 100
