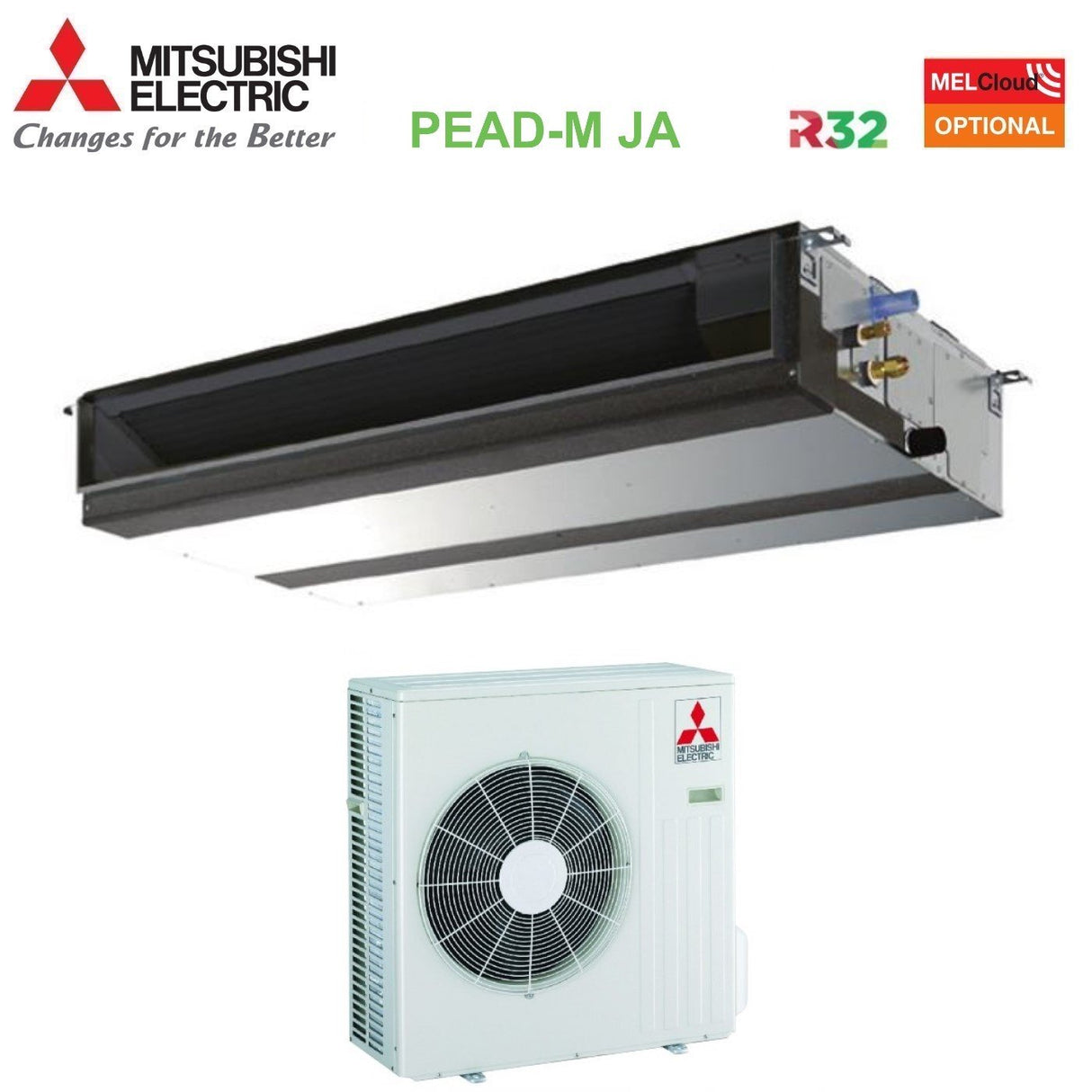

Air Conditioner Mitsubishi Electric Ducted Ducted Inverter Medium Prevalence 21000 Btu Pead-M60ja + Suz-M60va R-32 Wi-Fi Optional

Name: Air Conditioner Mitsubishi Electric Ducted Ducted Inverter Medium Prevalence 21000 Btu Pead-M60ja + Suz-M60va R-32 Wi-Fi Optional
Brand: Mitsubishi Electric
SKU: PEAD-M60JA + SUZ-M60VA
Price: 2173.0 EUR
Availability: OutOfStock

€2.173,00 VAT included

Tax included Shipping calculated at checkout.

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

Standard Shipping: Estimated delivery within 2 to 5 business days
Premium Shipping: Guaranteed delivery within 24 business hours
Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

In the absence of product availability, we can supply the channeled KD60 offer which can be viewed at the following link: click here

Technical features

Indoor unit catalog code : PEAD-M60JA
Outdoor unit catalog code : SUZ-M60VA
Power: 21000 btu
Optional Wi-Fi card : MAC-567IF-E
Optional remote control : PAR-FL32MA-E
Optional Infrared Receiver: PAR-FA32MA-W
Optional Simplified Wired Control : PAC-YT52CRA-K
Optional Deluxe Wire Control : PAR-40MAA

Energy efficiency

SEER : 6.0
SCOP : 4.0
Energy Efficiency Class in Cooling : A+
Heating Energy Efficiency Class: A+
Annual Energy Consumption in Cooling : 353 kWh/a
Annual Energy Consumption in Heating: 1594 Kwh/a

Performance

Cooling Capacity: 6.1 kW
Heating Capacity: 7.0 kW
Cooling absorption: 1.69 kW
Heating absorption: 1.84 kW
Treated Air Indoor Unit : 14,5~21 m ³ /min
Sound Power Level Indoor Unit : 55 dB(A)
External Unit Sound Power Level: 65 dB(A)
Sound Pressure Level Indoor Unit : 25~33 dB(A)
Sound Pressure Level Outdoor Unit: 49 dB(A)

Electrical data

Power supply (V,Hz, Ø) : 220~240/50/1
Refrigerant gas : R32
Operating range
- Cooling: -15° ~ 46° C
- Heating: -10° ~ 24° C

Installation data

Pipe diameter Liquid : 6.35 mm (1/4")
Gas pipe diameter: 15.88 mm (5/8")
Maximum piping length: 30 m
Maximum height difference Indoor Unit / Outdoor Unit: 30 m

Dimensions and weight

Internal Unit Dimensions (HxWxD): 250x1100x732 mm
Indoor Unit Weight: 30 Kg
External Unit Dimensions (HxWxD): 880x840x330 mm
Weight of Outdoor Unit: 54 Kg

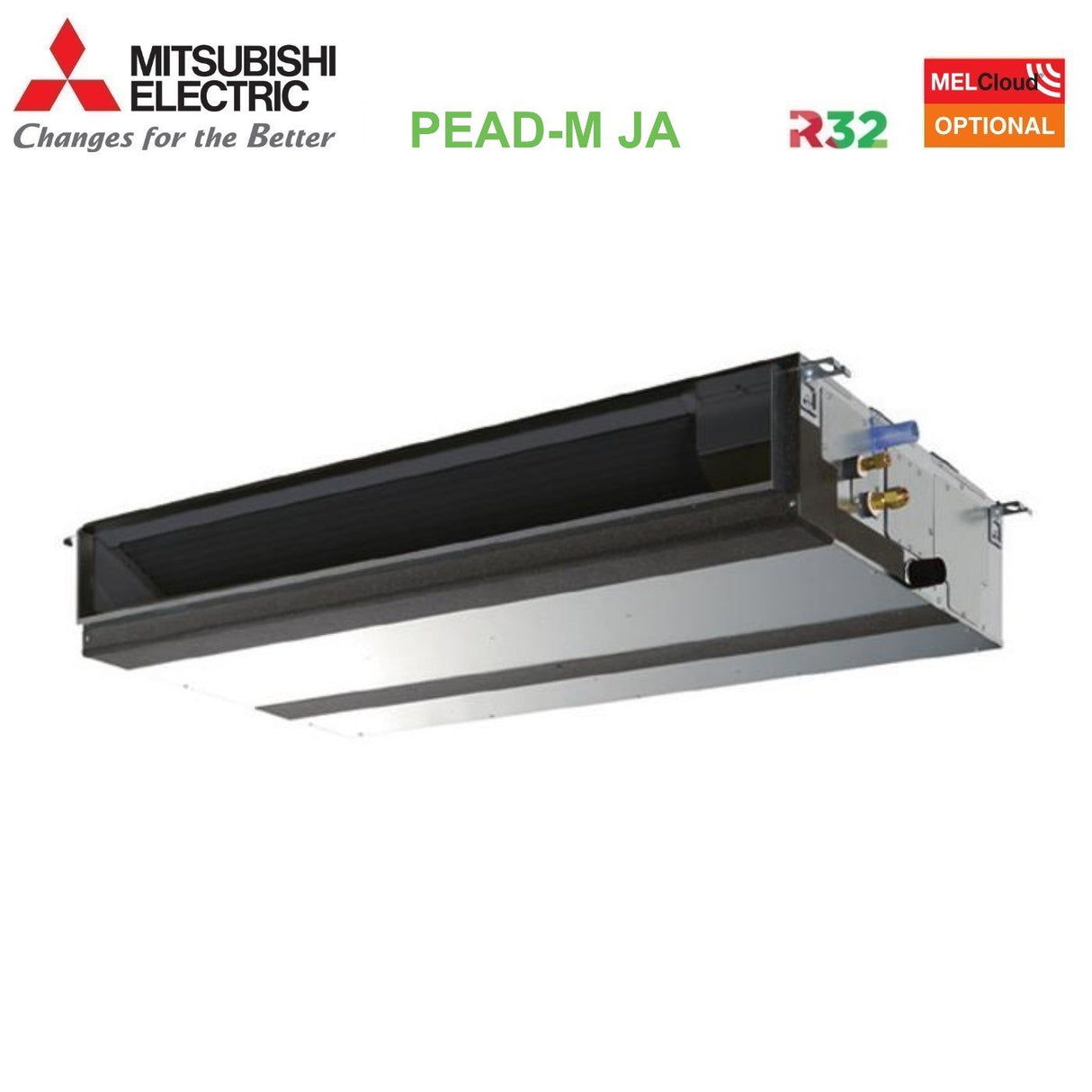

Mitsubishi Electric Ducted Medium Head PEAD-M JA

Cost-effectiveness and installation flexibility

The indoor units of this series of air conditioners, with low profile and concealed in the ceiling, are the perfect answer for the air conditioning requirements in the presence of very small ceiling installation space and external static pressure values subject to wide variations. Energy efficiency has been optimised, electricity consumption is reduced and the operating costs of the appliance are therefore lower.

The ultra-slim indoor unit is characterized by particularly quiet operation. It is equipped with a direct expansion coil. It is suitable for concealed ductable installation. A height of only 250 mm guarantees cost-effectiveness and installation flexibility

Extremely Quiet Operation

In addition to the innovative silent features already present on other Mitsubishi Electric air conditioners, the PEAD series employs a sirocco-type fan with extremely silent operation

Condensate Drain Pump Included

The HDPE series units are not only easy to install but also The provision of a drain pump with a head of 550 mm facilitates the drainage of condensate water even in critical conditions

Pompa Condensa

DC Inverter fan

The HDPE units are equipped with a DC Inverter fan which allows the modulation of the number of revolutions ensuring, in addition to silence, optimal comfort and energy saving

DC Inverter

Static Pressure Settable

External static pressure can be adjusted to suit system configuration and installation conditions. Static pressure settings can be increased to suit all duct types, having 5 steps available from 35 Pa up to 150 Pa

Various Installation Possibilities

HDPE series units are not only easy to install but also very versatile. It is possible to vary the position for the air intake, rear or lower , to optimize the space available

Possiblita Installazione

MELCloud, the Wi-Fi control

MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated MAC-567IF-E Wi-Fi interface, you can easily control your system wherever you are via PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, tablets and smartphones thanks to dedicated apps or via a web browser.

One word is enough for you!

MELCloud is compatible with Google Home. Saying «Hey Google!», or «Ok Google!» you have full control of the climate system. MELCloud is compatible with Amazon Alexa. A word will be enough to freely manage your air conditioning units

MelCloud HR
