LG Dual Split Inverter Air Conditioner DUALCOOL PREMIUM Series 9+9 with MU2R15 R-32 Integrated Wi-Fi 9000+9000

Technical Features

Internal Unit

External Unit

• Internal Unit Catalog Code: MU2R15 U13
• Max indoor units: up to 2 indoor units
• Dimensions (WxHxD): 770x545x288 mm
• Weight: 32.5 Kg

Energy Efficiency:

• SEER : 8.60
• SCOP : 4.61
• Energy Efficiency Class (Cooling): A+++
• Energy Efficiency Class (Heating): A++

Performance:

• Cooling Capacity Min-Nom-Max : 0.88 ~ 4.10 ~ 4.72 kW
• Heating Capacity Min-Nom-Max : 0.97 ~ 4.69 ~ 5.39 kW
• Power consumption Cooling Min-Nom-Max : 0.23 ~ 0.99 ~ 1.39 kW
• Heating power consumption Min-Nom-Max: 0.24 ~ 1.07 ~ 1.46 kW
• Sound power level: 60 dB(A)
• Sound pressure level: 46 dB(A)

Characteristics:

• Power supply (V/Hz/Φ) : 220~240/50/1
• Refrigerant gas: R-32
• Liquid tube diameter: mm 6.35(1/4) x2
• Gas pipe diameter: 9.52(3/8) x2 mm
• Maximum total pipe length: 30 m
• Maximum length of single pipe: 20 m
• Maximum permitted difference in height U.Int-U.Est. 15 m
• Guaranteed temperature range:
• - Cooling: -10°~48°C
• - Heating: -18°~18°C

Inverter compressor guaranteed for 10 years

General Description

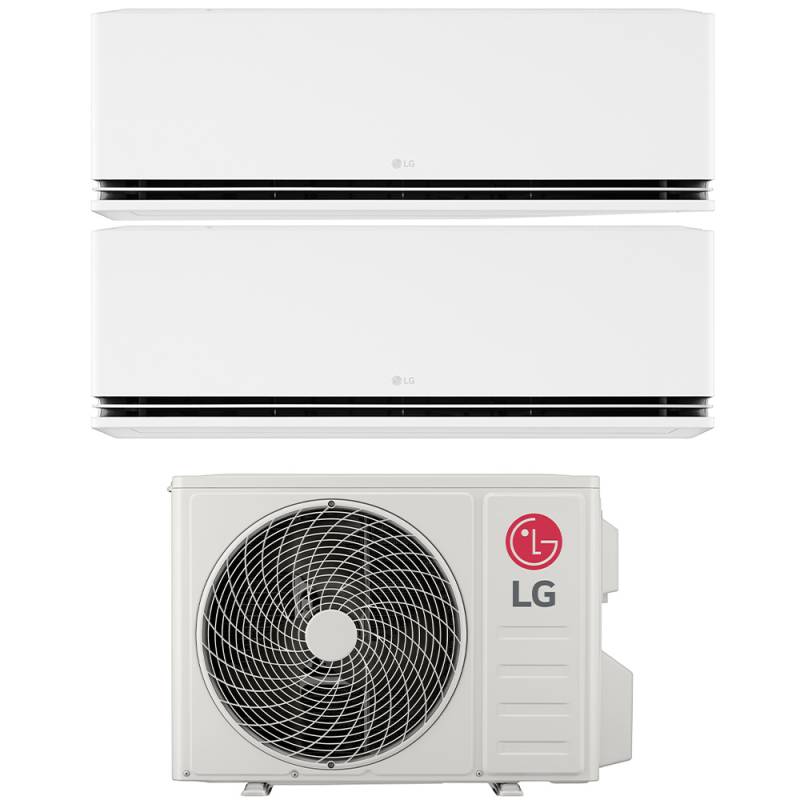

The LG Electronics Residential system with R32 refrigerant consists of an external unit with air-refrigerant exchange to be installed outside the rooms and connected by refrigerant pipes to an internal unit for air conditioning, which can function in cooling, heating and dehumidification.

The internal units are equipped with the new SOFT AIR indirect air diffusion system, the new technology uses 1 main double-blade deflector for rapidly reaching the room temperature and 1 secondary diffuser for soft diffusion of maintenance air.
The units are equipped with integrated wi-fi which allows you to remotely manage all the functions, in the environment the new models communicate with all the voice assistants, from the app it is possible to view the filter maintenance, set the electricity consumption in cooling, carry out self-diagnosis.

SOFT AIR indirect air diffusion system

The soft air function allows for optimized airflow to achieve perfect comfort.
The soft air function can be activated in cooling or ventilation only mode.

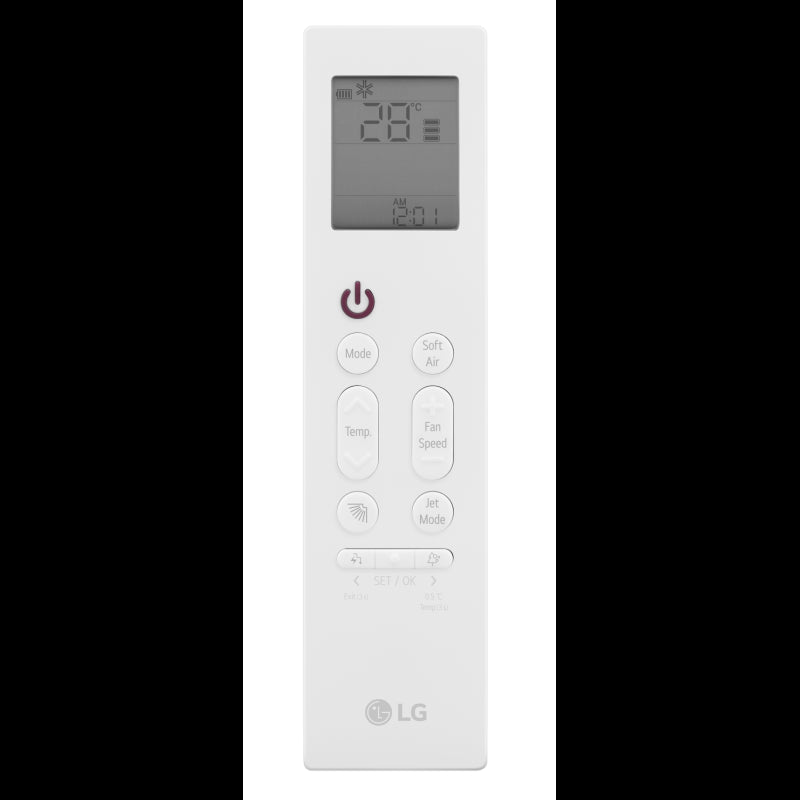

The air flow temperature control is adjusted on the infrared control in a range from -4c° to + 4 c° values.
viewable on the control display, it works in a range from 15 C° to 20 C°. Fig 2.
The function is available when the internal temperature is below 28c°. The air speed during the SOFT AIR function works on 5 settings
ranging from super minimum to a maximum speed between low and medium speed. (see fig.1)

Total air care system

Internal unit equipped with an ionizer that emits negative ions.
Homes often contain countless microscopic particles that can negatively affect your health.

Using over 3 million ions, Plasmaster Ionizer+ helps you stay fresh and maintain healthy air by eliminating over 99.9% of bacteria attached to furniture or clothing and deodorizing.

Feel at ease knowing that 99.9% of germs are eliminated, leaving you with pure, healthy air.

• Anti-allergy filter
• Automatic drying function
• Heat exchanger cleaning function

General Features

• INTEGRATED Wi-Fi: Internal unit with integrated Wi-Fi to manage the main functions through the Smart ThinQ app available for Android or iOS
• Voice Control: Indoor unit compatible with Google Home voice assistants.
  Available functions:
  Ignition
  Power off
  Temperature regulation
  Setting operating modes
  Ventilation regulation
  Monitoring


• Total Air Flow Control: Indoor unit with total air flow control. 6-step vertical adjustment, viewable on infrared control and 5 horizontal steps.
• Active Capacity Control: 4-step energy consumption control via button on the infrared control NORMAL 100% CONSUMPTION: Room with several people, with a high level of activity.
  STEP1 80% CONSUMPTION: Place with more people, with reduced level of activity.
  STEP2 60% CONSUMPTION: Premises with few people, with a reduced level of activity.
  STEP2 40% CONSUMPTION: Place with few people, with a very low level of activity.
• Smart Diagnosis: Smart Diagnosis allows you to check the functionality and solve problems via smartphone with a simple SMART DIAGOSIS app available for Android devices.
• Presence Sensor: In case of absence detected for more than 20 minutes, the unit enters energy saving mode. In cooling mode there will be an increase of 2 degrees of the set point, in heating mode there will be a decrease of 2 degrees of the set point.
• Open Window Detection: The function must be set from the App, it detects sudden changes in temperature and prevents energy waste, when it enters energy saving mode it increases the set point temperature by 1.5 degrees in cooling mode and lowers it by 2.5 degrees in heating mode.

• peso: 55.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: LG
• modello: DUALCOOL PREMIUM 9+9 15
• potenza btu: 9000+9000
