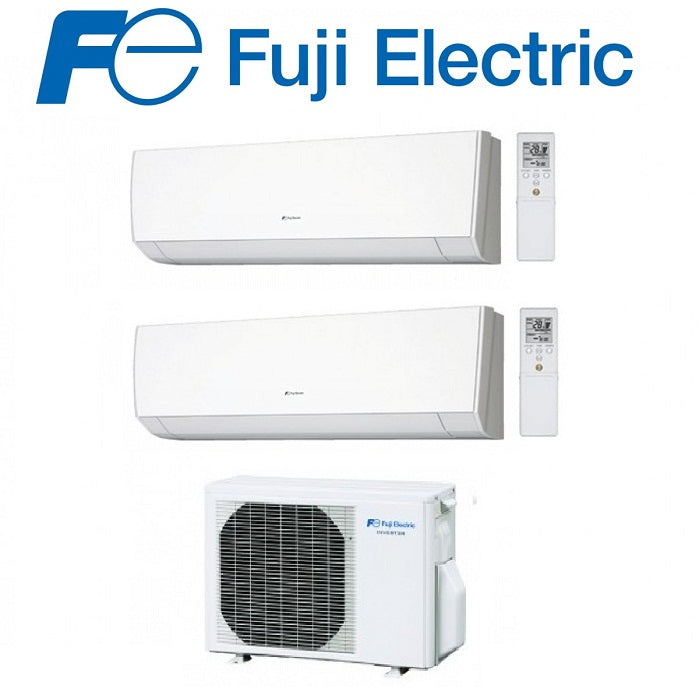

Fuji Electric Air Conditioner Dual Split Inverter Series Lm 7+12 With Rog18l 7000+12000

Technical features

INDOOR UNIT

1) Model

2)Model

Product code: RSG 12 LMC
Feeding: 230/1/50
Sound pressure (Cooling-Heating) H/M/L/Q: 42/38/33/25 dB(A)
Sound power (Cooling-Heating): 56/57
Air flow: 600/520/430/310
Dimensions: 268x840x203 ; 8.5kg

OUTDOOR UNIT

Model: ROG18L
Nominal capacity (Cool-Heat): 5.0 - 5.6 Kw

Performance:

Sound pressure (Cool-Heat): 50-51 dB(A)
Sound Power (Cool-Heat): 63-64 dB(A)

Electrical data:

Power supply V/ Ø/Hz: 230/1/50

Dimensions:

Liquid-Gas piping connections: 6.35 / 9.52
Maximum height difference UI-UE: 10 m
External Unit Dimensions: 540x790x290 38 Kg

General characteristics

MULTISPLIT INVERTER TECHNOLOGY

Wellness in all rooms; By distributing different indoor units in the various areas of the home, the desired temperature is reached evenly. Fuji Electric Multisplit Inverter systems can combine from 2 to 8 indoor units with a single outdoor unit thus, in addition to offering great placement versatility, the external aesthetics of the home are prevented from being modified.

Energy saving: The use of the compressor and the DC fan increases the efficiency of the air conditioners and at the same time guarantees lower electricity consumption

Elegant Indoor Units: Fuji Electric has a wide range of elegantly designed indoor units ranging from 2 to 7 kW. The ultra-thin Slim ductable units of only 198 mm in height have the condensate lifting pump as standard and the Auto Louver Group Kit as an accessory.

The best performance on the market This range equipped with the latest Inverter technology makes it possible to achieve high energy efficiency values: great comfort and energy savings.

Maximum flexibility The indoor units can operate individually or simultaneously. Combinations of 2 large capacity indoor units can also be made with 3x1 and 4x1 outdoor units.

Easy installation Thanks to the possibility of reaching considerable piping lengths, the outdoor units can be installed almost anywhere.

INDOOR UNITS

Elegant and compact indoor units (models LU, LM and LF) Equipped with antibacterial filter and catechin filter, they guarantee greater energy efficiency: all 2x1 combinations are in class A and have a very low noise level.

WALL SPLIT INVERTER LM series

Cutting-edge design and compact dimensions: The indoor units have compact dimensions, only 203 mm deep, and allow both greater energy savings and easy maintenance thanks to the removable and washable front panel.

“Low Noise” function for the external unit It is activated from the remote control and allows to further reduce the sound level of the external unit.

Maximum comfort at home: Low energy consumption, optimal performance and cleanliness is what characterizes the Fuji Electric Split Inverter range. These features allow you to make the most of your home environments.

Compact and elegant design With its compact and elegant design, the Slide becomes a decorative piece of furniture, as well as guaranteeing a high level of comfort with the greatest energy savings
