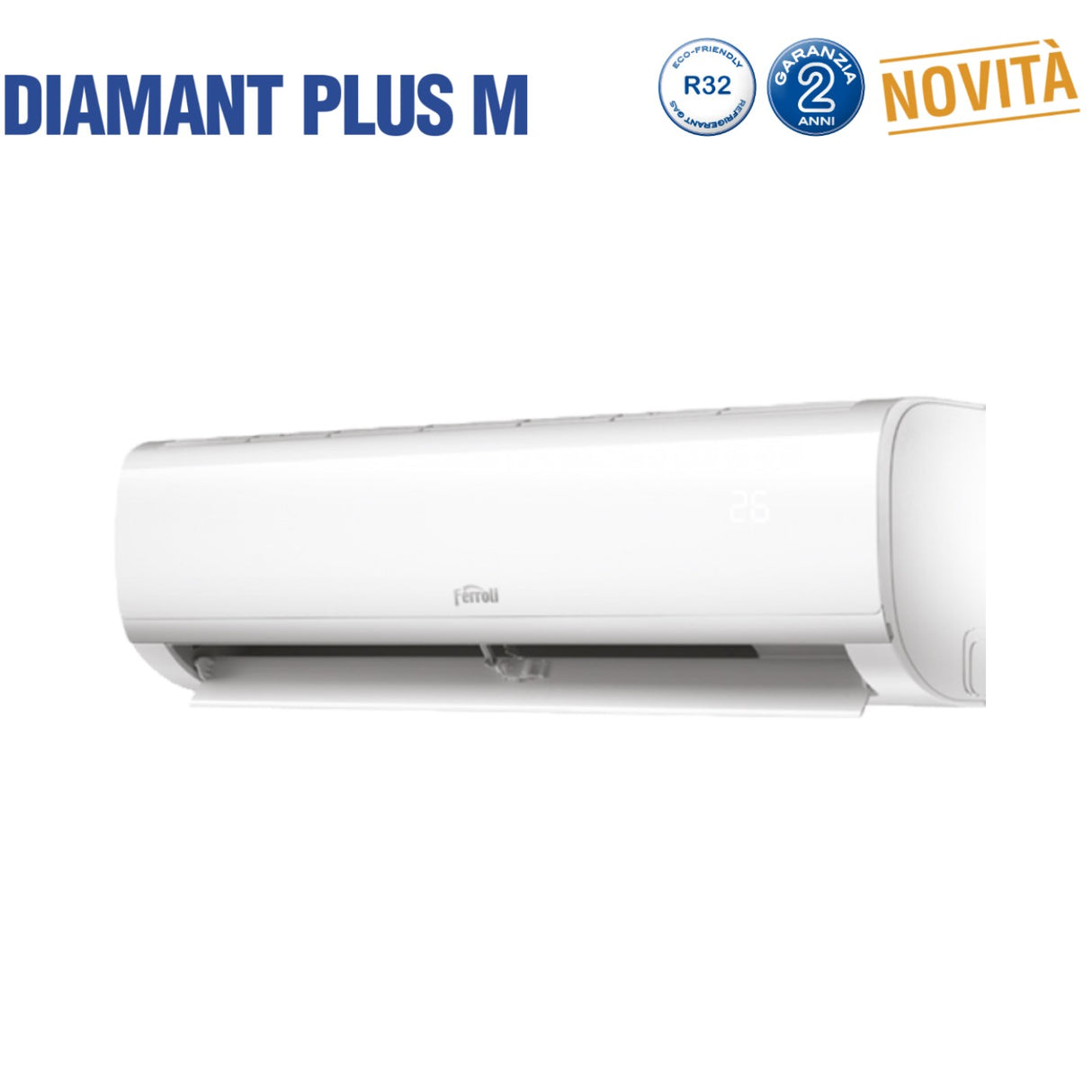

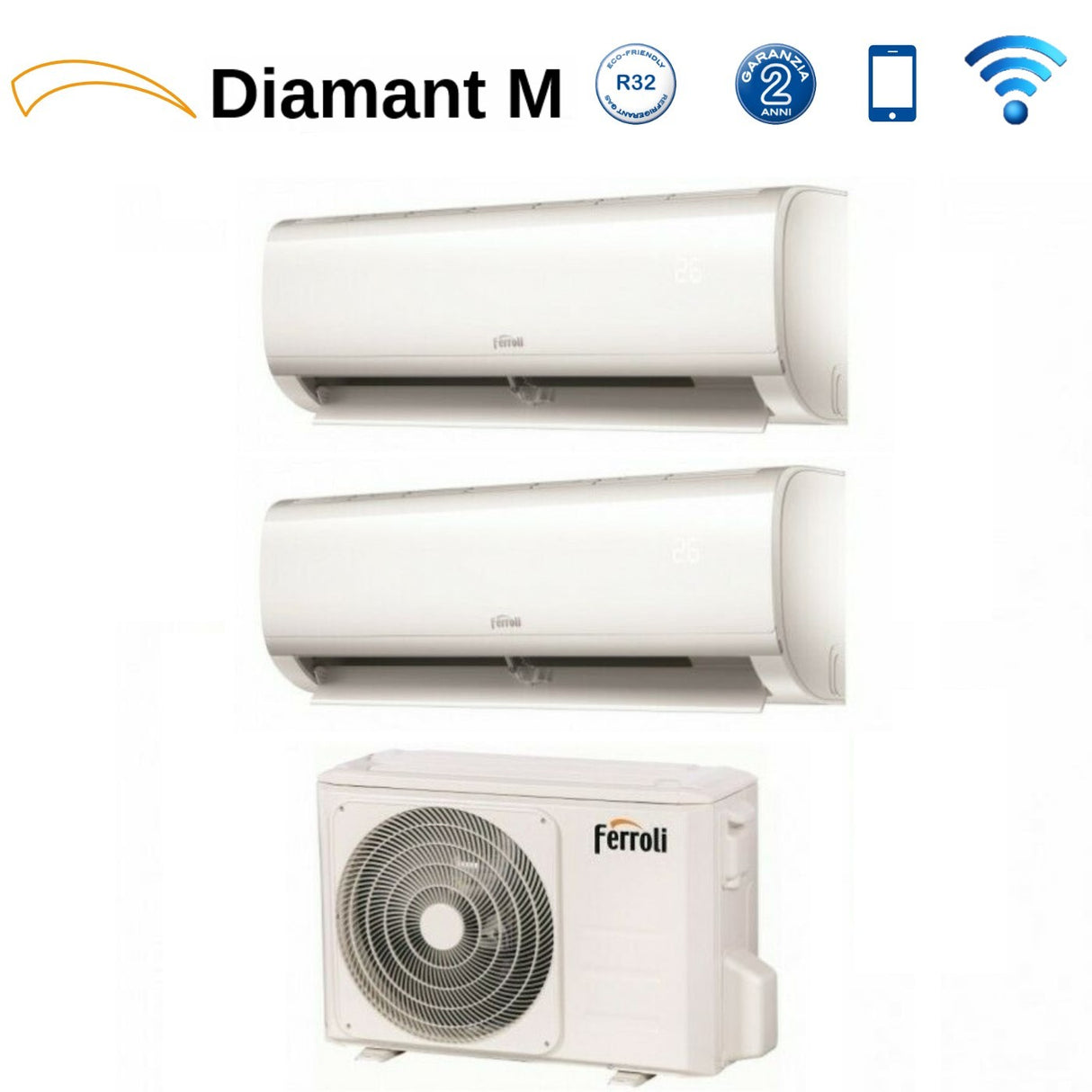

Air Conditioner Ferroli Dual Split Inverter Diamant Plus M 9+9 Series With 18-2 R-32 Integrated Wi-Fi 9000+9000 - New
Air Conditioner Ferroli Dual Split Inverter Diamant Plus M 9+9 Series With 18-2 R-32 Integrated Wi-Fi 9000+9000 - New is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:
- Standard Shipping: Estimated delivery within 2 to 5 business days
- Premium Shipping: Guaranteed delivery within 24 business hours
- Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours
See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.
For more details on Premium Shipping, please visit the Premium Shipping page.
Customer service
Customer service
Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.
Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.
Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.
Description
Description
Technical features
Indoor Units
Model
- Internal Unit Catalog Code: 2x 2CO9B01F
- Power: 9000 btu/h
- Cooling Capacity : 2.64 kW
- Heating Capacity : 2.93 kW
- Treated air : 460 m 3 /h
- Sound pressure level : 21~40 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxHxD): 805x285x194 mm
- Indoor Unit Weight: 7.5 Kg
- Integrated Wi-Fi
Outdoor Unit
Model:
- Indoor Unit catalog code: 18-2 ( 2CO9AA0F )
- Max indoor units: up to 2 indoor units
Energy efficiency:
- SEER : 6.1
- SCOP: 3.8
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A
Performance:
- Cooling Capacity: 5.28 kW
- Heating Capacity: 5.57 kW
- Cooling absorption: 1.63 kW
- Heating absorption: 1.39 kW
- Sound power level : 65 dB(A)
- Sound pressure level : 56 dB(A)
Characteristics:
- Power (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas : R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 24° C
- Pipe diameter Liquid : 6.35 mm (1/4") x2
- Gas pipe diameter : 9.52 mm (3/8") x2
- Maximum piping length: 40 m
- Maximum height difference Indoor Unit / Outdoor Unit: 15 m
Dimensions:
- External Unit Dimensions (WxHxD): 800(70)x554x333 mm
- Weight of Outdoor Unit: 35.5 Kg
Ferroli DIAMANT PLUS Climatic Comfort and Elegance in Shapes
New and clean air in Ferroli
The latest proposal from the Ferroli house is appreciated for the elegant lines and the compactness of the machine body. It combines design, technology, energy saving, respect for the external environment and for that of the home, where Ferroli has always been at the forefront.
Features and Functions
• R-32 : R32 ecological refrigerant. It complies with the Montreal protocol, it does not damage the ozone layer because it is free of HCFCs
• 2 year European guarantee
• Universal indoor units that can be combined with mono or multi split outdoor units
• ROHS : The products are all ROHS compliant according to Directive 2002/95/CE
• Direct Current (DC) Inverter Technology
• Infrared remote control: for controlling all the air conditioner functions
• AUTO function: automatically activates Cool/Heat operation based on the room temperature and the Set Point
• SWING function: motorized deflector flap
• DRY function: accentuates the summer dehumidification phenomenon
• TURBO function: takes operation to maximum speed for rapid achievement of the SET POINT
• SLEEP function: Increases night comfort
• FAN function: activates the indoor unit in ventilation only
• FROST PROTECTION function: It fixes a minimum anti-freeze safety set point of 8°C
• Self-diagnosis : Self-diagnosis system and description of any anomalies
• Memory retention and automatic restart in case of voltage drop
• Double Filtration: "Cold Catalyst" (cold catalyst) and "Biohepa"
• Operation in Cooling
• Operation in Cooling
• Timers
• Remote control with dedicated smartphone App
• Outdoor Unit which can be combined with different types of indoor units
• External Unit equipped with connection cover cap and sound-absorbing hood
• Suction grille and easily removable filters for quick cleaning
• Outdoor unit treated with anti-rust protective substances
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
Technical Data Sheet
Technical Data Sheet
- peso: 55.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- gas: R-32
- marca: Ferroli
- metri quadri : 25/25
- modello: DIAMANT+ 9+9 18
- potenza btu: 9000+9000
- superficie riscaldabile mq: 25/25
