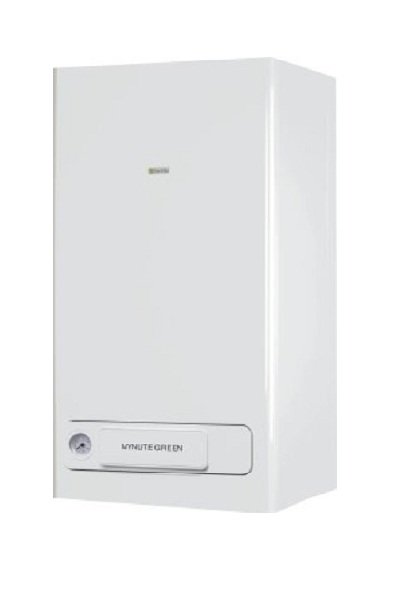

Gas Boiler Beretta Mynute Green E 30 Csi Methane Condensing Complete With Fume Exhaust Kit -New Erp

Mynute Green E - ErP

• System energy class A+ (in combination with external probe and Rec 08 remote panel)
• Heating energy class A
• Energy class of the sanitary A
• New condensing exchanger Modulation 1:5
• Flex low consumption circulator (IEE≤0.20)
• Ducting with flue Ø 50 mm


Mynute Green E: high energy efficiency, low gas consumption and low emissions.

The entry into force of the European Directive ErP (26.09.2015) provides that even generators for the production of heating and domestic hot water are classified through the appropriate energy label indicating the class. Compulsory labeling provides greater transparency on the characteristics of the products which can be easily compared, helping the user to find those with greater efficiency. Consequently, even with boilers it will be easier to contribute to the achievement of the "20-20-20" objective set for the year 2020 which consists of: reducing greenhouse gas emissions (CO2 ) by 20%, increasing by 20 % use of renewable energies and reduce energy consumption by 20% in EU countries.

The new Beretta condenser exchanger with front access

The Mynute Green E boiler is equipped with the new Beretta condensing exchanger with front access. An innovative system of guides allows it to move like a drawer, making disassembly for cleaning required by current regulations much faster. Continuous research has allowed Beretta to obtain an exchanger characterized by a considerable increase in performance: 94% average seasonal efficiency calculated according to the European ErP Directive. The exchanger comes from a single aluminum tube, without welding thanks to an innovative production process. The high thermal conductivity of aluminium, much higher than that of steel, allows for greater uniformity in temperature distribution. The single pipe architecture (series circuit) allows for a large section for the passage of water with the advantage of reducing pressure drops and preventing the deposit of impurities, keeping the exchanger performing over time. With the new Beretta condensing exchanger, boiler performance improves up to an average seasonal efficiency of 94%.

Mynute Green E, the elegant

The new Mynute Green E is characterized by a particularly elegant aesthetic and is equipped with a simple and intuitive digital display which makes information on the status of the appliance immediately usable. The modern ergonomic knobs allow you to easily select all the functions necessary for using and setting the boiler.

Flex modulating circulators: optimized performance, low consumption

Mynute Green E uses a synchronous modulating circulator with low energy consumption, as required by the European ErP Directive. Thanks to this new technology, the electric motor of the circulator offers an Energy Effi ciency Index of less than 0.20, which means significantly reduced electricity consumption. The new circulator works proportionally to the power supplied by the boiler, thus contributing to a further reduction in electricity consumption. In case of need on the heating system, it is possible to change the head without having to replace the standard circulator with a high head one, the name “Flex” derives from this feature.

Up to 49 meters of ducting

With Mynute Green E it is possible to comfortably intubate even the most "difficult" flues thanks to the approval for flue Ø 50mm. The main 50mm flue ducts are available in the Beretta price list catalogue, while the boiler manuals provide indications of the maximum length, which differ according to the boiler power.

Characteristics:

• MYNUTE GREEN E + external probe + REC 08 remote control forms a class A+ system
• Designed according to the ecodesign indications provided for by the European ErP Directive
• Energy Class > heating (class A) > DHW profile XL (class A)
• Seasonal heating efficiency 94%
• Low polluting emissions: class 5 (UNI EN 483)
• New high-flow aluminum condensing exchanger with front access
• Standard thermoregulation (optional external probe)
• ErP boilers with low consumption modulating circulator (EEI0.20) modifiable up to 7m head
• Hydraulic connections cover (optional)
• Possibility of intubating flues with the special flue ø 60 in PP and ø 50 in PP (only ErP boilers)
• Template, plumbing fittings, gas and sanitary taps supplied
• For gas conversion, contact authorized Beretta Technical Assistance Centres
