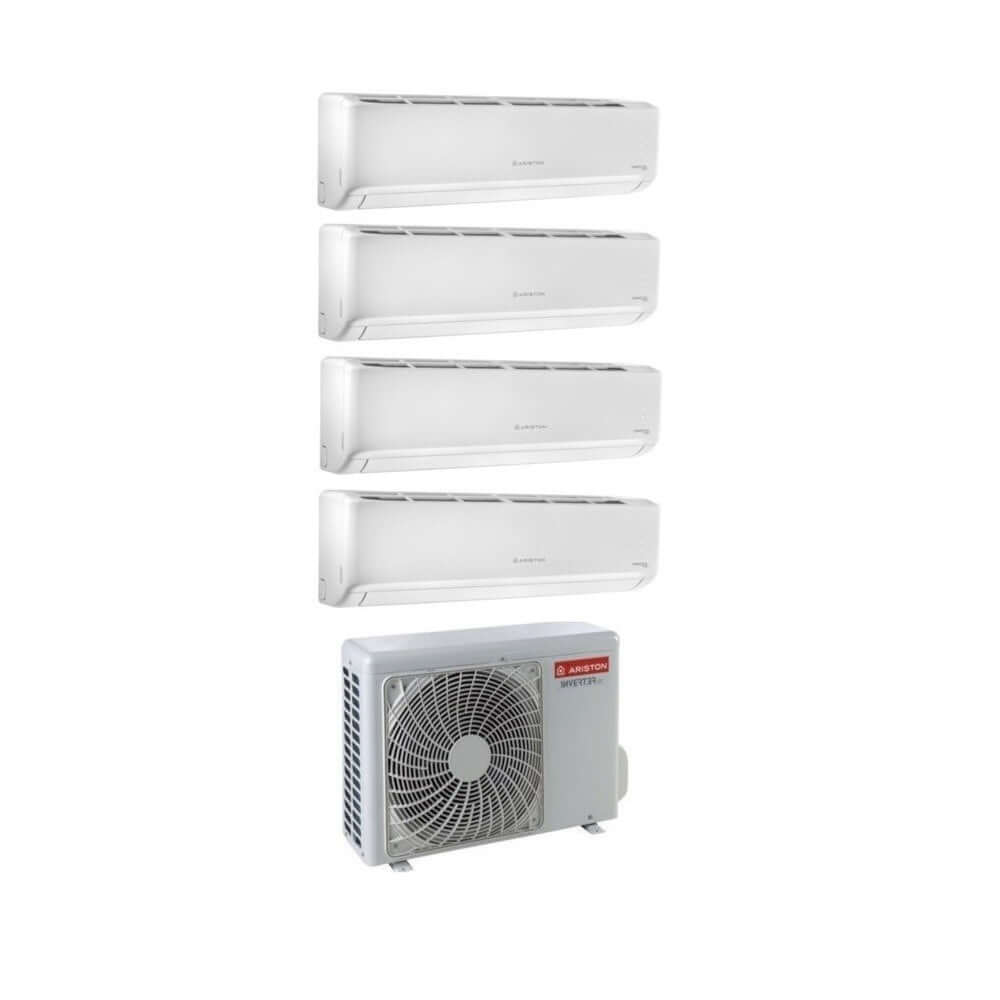

Ariston Air Conditioner Quadri Split Inverter Alys Plus 9+9+9+9 Series With Quad 110 Xd0b-O 9000+9000+9000+9000

General characteristics

Alis Plus

Ariston looks to 2016 with a range of air conditioners, with renewed aesthetics with particular attention to detail, with all the strength of cutting-edge technology that considerably increases product performance.

PROtech is the logo that identifies the range of Ariston air conditioning systems dedicated to the channel and to professional users, with greater performance and functionality, and many more advantages in terms of comfort and energy saving.

Main features:

• up to class A+
• "invisible" display
• high silence
• 3D technology
• low ambient
• 12-speed internal fan
• platinum filter (optional)
• coolant leak sensor
• low ambient
• turbo function
• memory function
• follow me function
• autorestart function


Follow Me

With the Follow Me function, more precise temperature control is now possible. With the remote control, which becomes a thermostat thanks to the integrated sensor, it is possible to operate the air conditioner in relation to the actual temperature detected in the point of the environment where the remote control is positioned.

High silence

Well-being in all its forms is at the heart of the Ariston production philosophy. For this reason, technological devices have been introduced in all the products which guarantee extremely silent operation.

12 speed fan

For each of the three "base" speeds (HIGH, MED, LOW) the climate control system has a further three speed sub-levels set automatically. These, added to the speeds of the dehumidification, turbo and silence functions, make it possible to have a total of 12 air flow speeds.

Memory

This is the function that allows you to set and memorize both the temperature and the fan speed (also the Sleep function, if activated) to ensure greater comfort the next time you turn it on

Full feature list:

• 3D DC Inverter Modulation of compressor frequency, internal fan speed and external fan speed.

• Blue Fin : Facilitates the drainage of condensate water from the indoor unit and accelerates the defrosting of the outdoor unit, increasing energy efficiency

• Optimized pipe section : The trapezoidal section of the new pipes allows the passage of more refrigerant, improving energy efficiency

• Vertical swing : Starts the automatic swing of the internal vertical louvers.

• Airflow Comfort: In cooling mode the airflow is directed upwards while in heating it is directed vertically downwards for comfort.

• Anti Cold Air: In heating mode, the speed of the indoor unit fan will be adjusted to ensure that no cold air comes out in the first instants of start-up.

• Turbo function : Reaches the preset temperature in the shortest possible time (only in cooling).

• Auto function : The temperature and fan speed are set automatically on the basis of the ambient temperature detected.

• Sleep function: Automatically adjusts the temperature to make the environment more comfortable during the night.

• Low Ambient Cooling : The air conditioner operates in cooling mode with outside temperatures below 15°C

• Refrigerant leak sensor: Possible refrigerant leaks are identified by indicating “EC” on the display (in the case of LED display, the RUN and TIMER LEDs flash)

• Flap Auto Memory: When the climate control system is switched off, it stores the last flap position set.

• Timer : Turns the air conditioner on and/or off at the desired time

• SelfClean : Automatically cleans and dries the evaporator, keeping it in optimal conditions for subsequent operation.

• Self-diagnosis: Any operating anomalies are monitored, automatically switching off the appliance in the event of malfunctions and indicating the error code on the display of the indoor unit

• AutoRestart : In the event of a power blackout, the air conditioner restarts with the last function set after resetting (mode, temperature, fan speed and flap position).

• Anti-rust treatment: Anti-rust treatment for outdoor unit shells.

• Anti-odour filter: Removes bad odors and volatile organic compounds.
